Hazmat Static Ground Test Kit

Description

This Hazmat Static Ground Test Kit is ready for any hazmat spill application, big or small. Unlike most basic static grounding kits this includes a Digital Ground Resistance Tester – AEMC Model 6422 and a wide array of accessories to meet just about any flammable hazardous material transfer. You won’t find another kit that encompasses all the essential components required at a HAZMAT transfer site.

Simple Grounding Test Meter Operation

Durable “Fireman proof” one button test operation with the reading held on-display at the end of the test. The test button lights up in an amber color during the test and turns green at the completion of a successful test. If an error occurs the test button turns red and the display will flash the error.

• The meter powers up in continuity – resistance measurement mode to ensure the electrode is connected properly.
• Improved measurement accuracy with automatic test frequency selection.
• Hazardous voltage detection and ‘test inhibitor’ to protect the user and meter up to 700 VAC/DC.
• Water and dust resistant rated to IP65 and made of flame retardant materials.

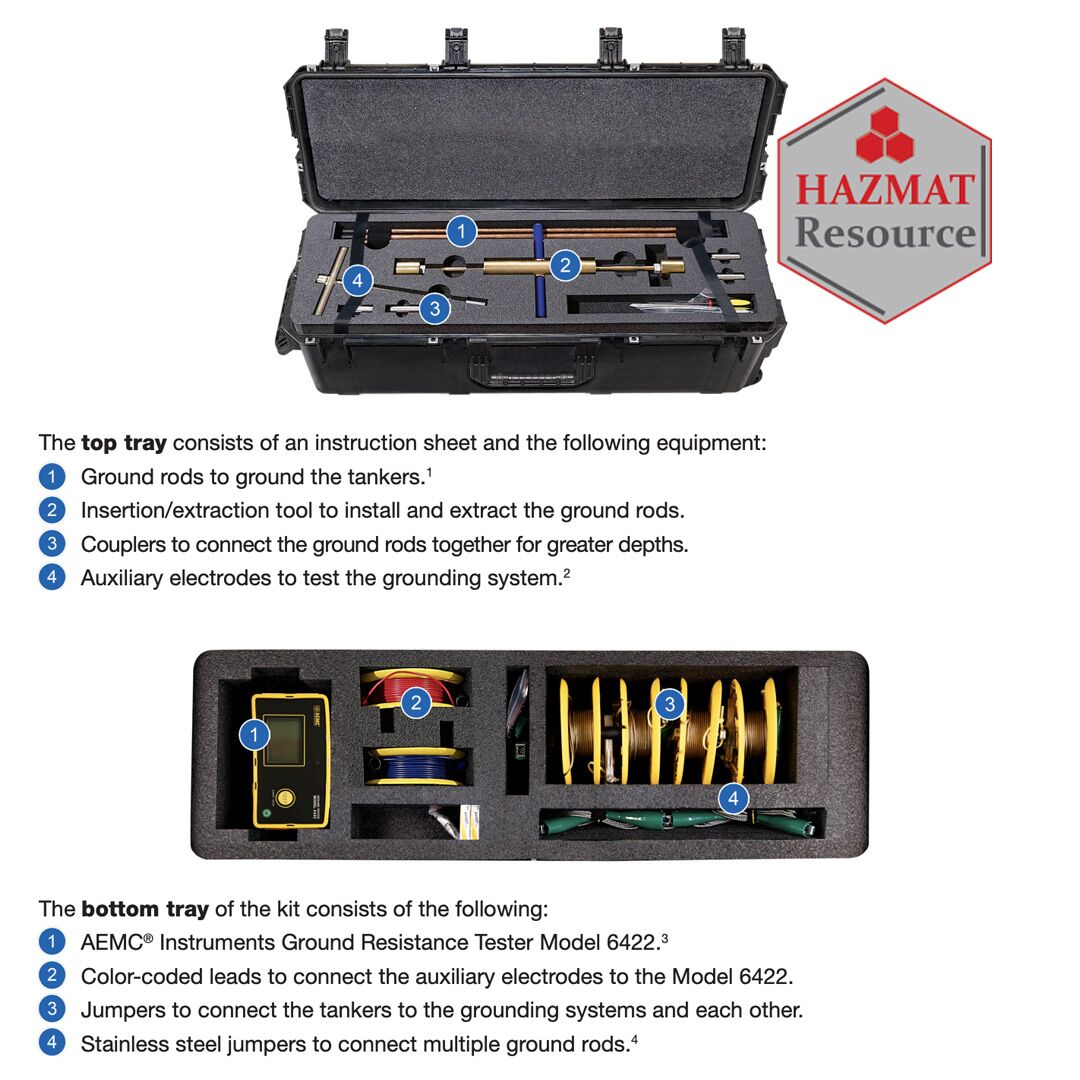

The hazmat ground test kit includes:

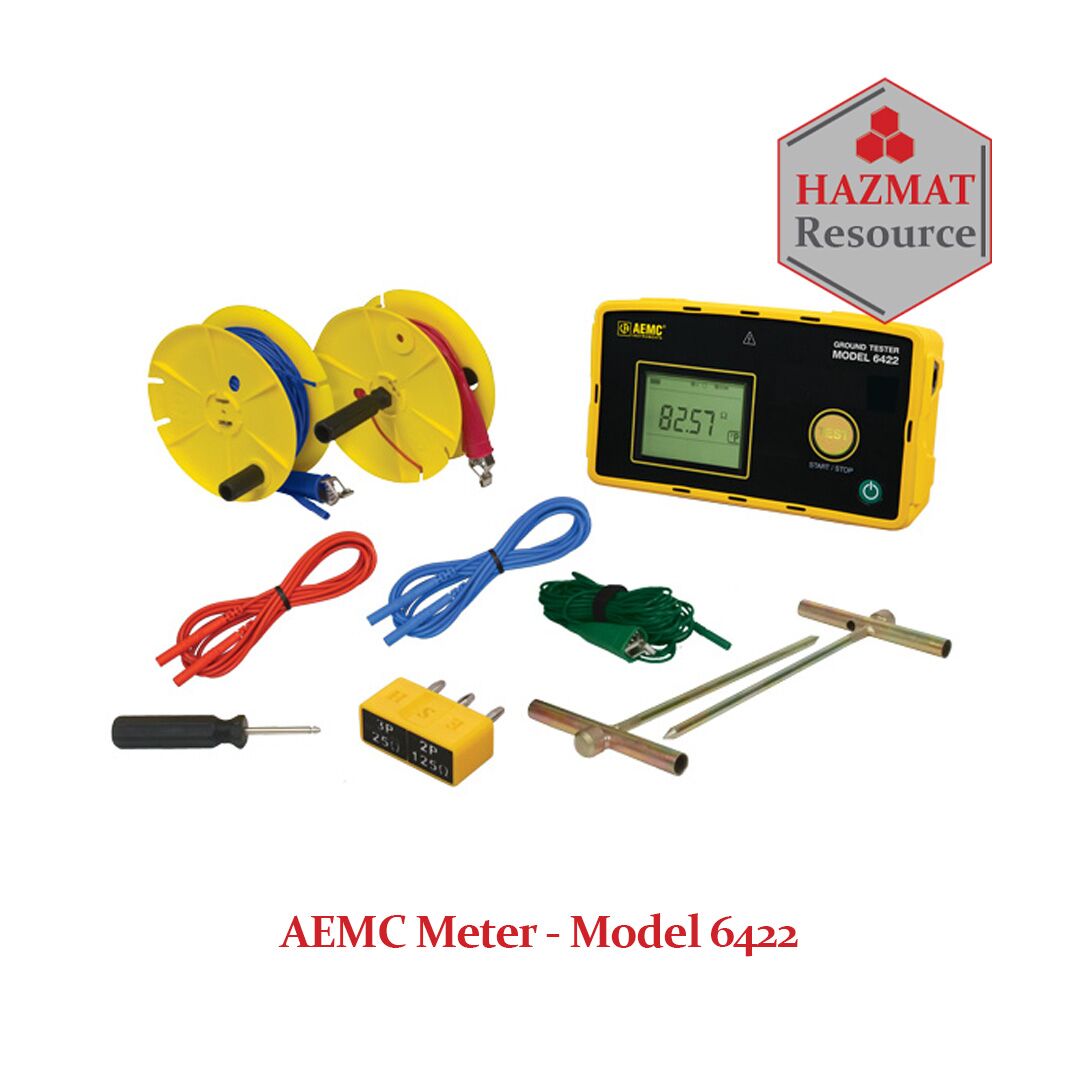

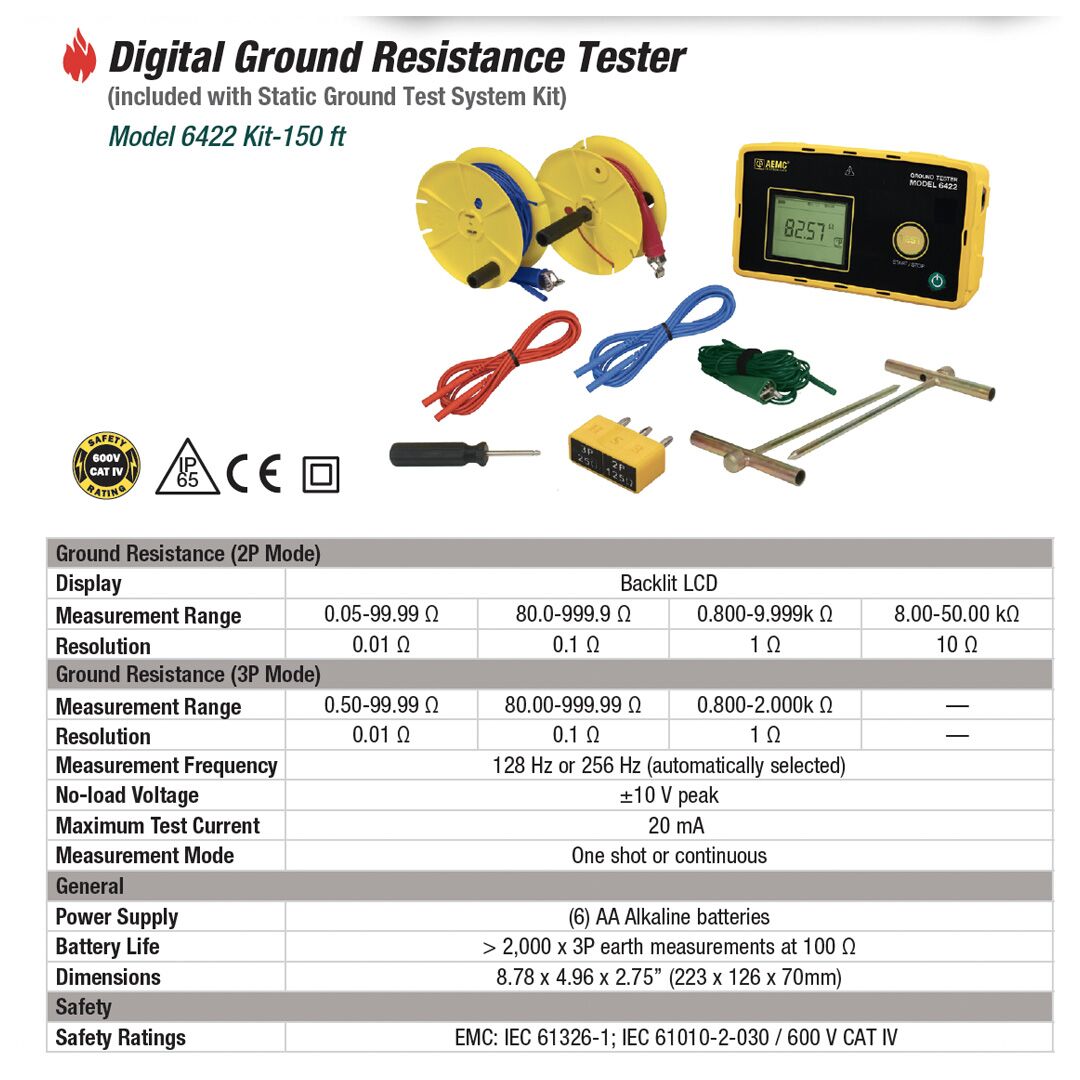

• Ground Resistance Tester Model 6422 performs resistance and 3-pole ground resistance measurements
• Two 150 ft color-coded leads on spools (red/blue)
• One 30 ft lead (green)
• Two 14.5” T-shaped auxiliary ground electrodes
• One calibration checker, batteries and user manual
• One 100 ft tape measure and eight cable ties
• Six threaded copper clad 3 ft ground rods
• Four ground rod couplers
• One 50 ft bonding cable with REB clamps
• Three 50 ft grounding cables (REB clamp on one end, Mueller clip on the other end)
• Six 10 ft ground rod jumper cables with Mueller clip on both ends
• One ground rod driver – extractor tool
• Waterproof utility carrying case with wheels and handle

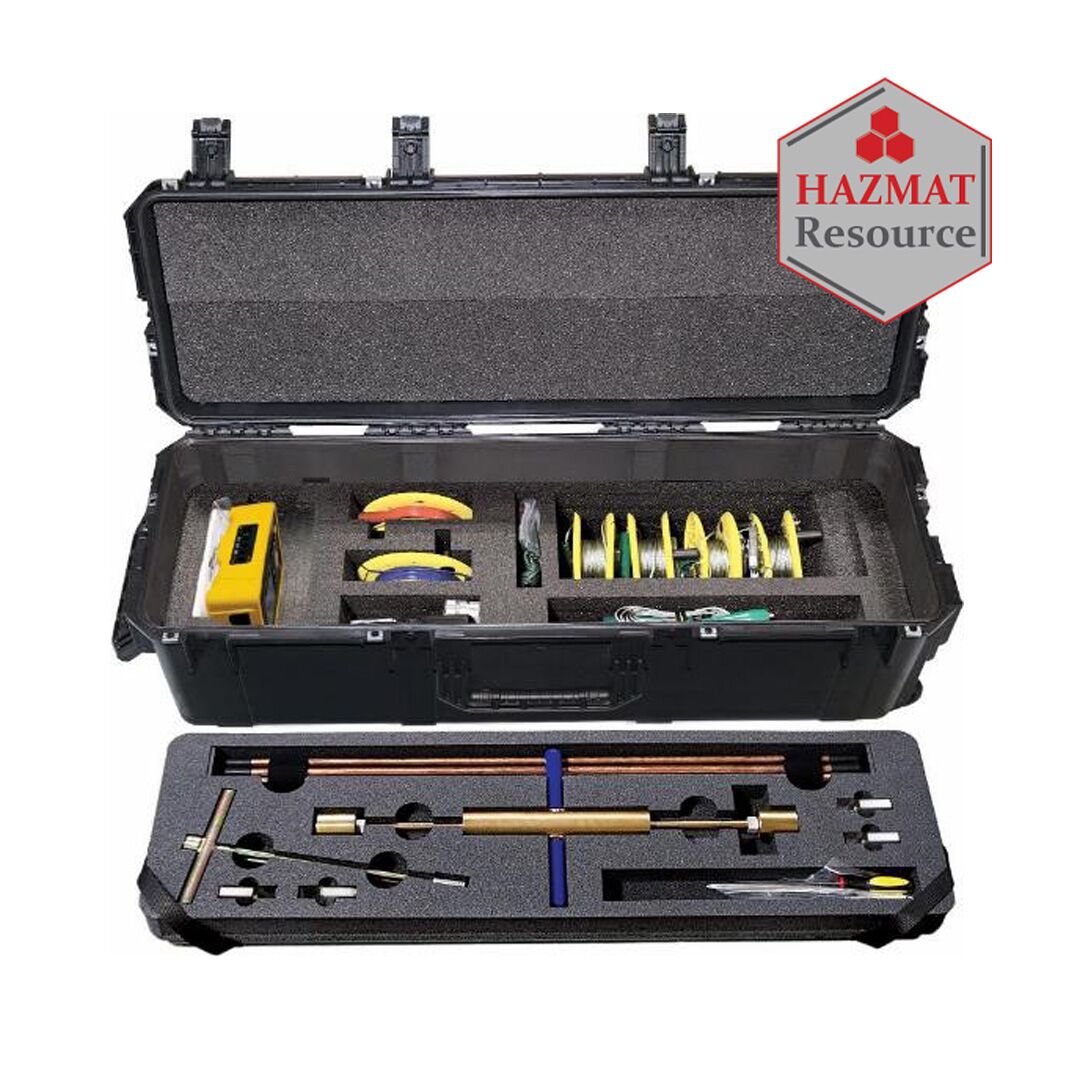

Static Ground Test System Kit
Grounding and Bonding Procedures Video

And be sure to checkout our Hazmat Stinger Trailer Setup – Tanker Truck Emergencies – Hazmat Roadshow TV S01E02 https://www.youtube.com/watch?v=_8R0pMAYWss

This portable static grounding systems instructions explain how to properly setup the Static Ground and Bond Test System Kit from AEMC Instruments. It includes all the necessary components to safely install a temporary grounding systems.

Hazmat Grounding and Bonding Procedures PDF	General Grounding and Bonding Instructions PDF	AEMC Hazmat Static Ground Test Kit PDF

To help lower the risk of electrostatic discharge when offloading flammable liquids, standards like NFPA 472 require first responders to bond any tankers to a temporary grounding system. A temporary grounding system like this hazmat static ground test kit creates an equipotential plane between the tankers and the equipment used to pump the liquid. The electrically conductive pathway from the vehicles to the ground allows any static electricity to safely dissipate into the ground. However, if the tankers or equipment are not properly bonded and grounded, static electricity could build up and create a spark capable of igniting the vapors and causing an explosion.

Hazmat Static Ground Test System
