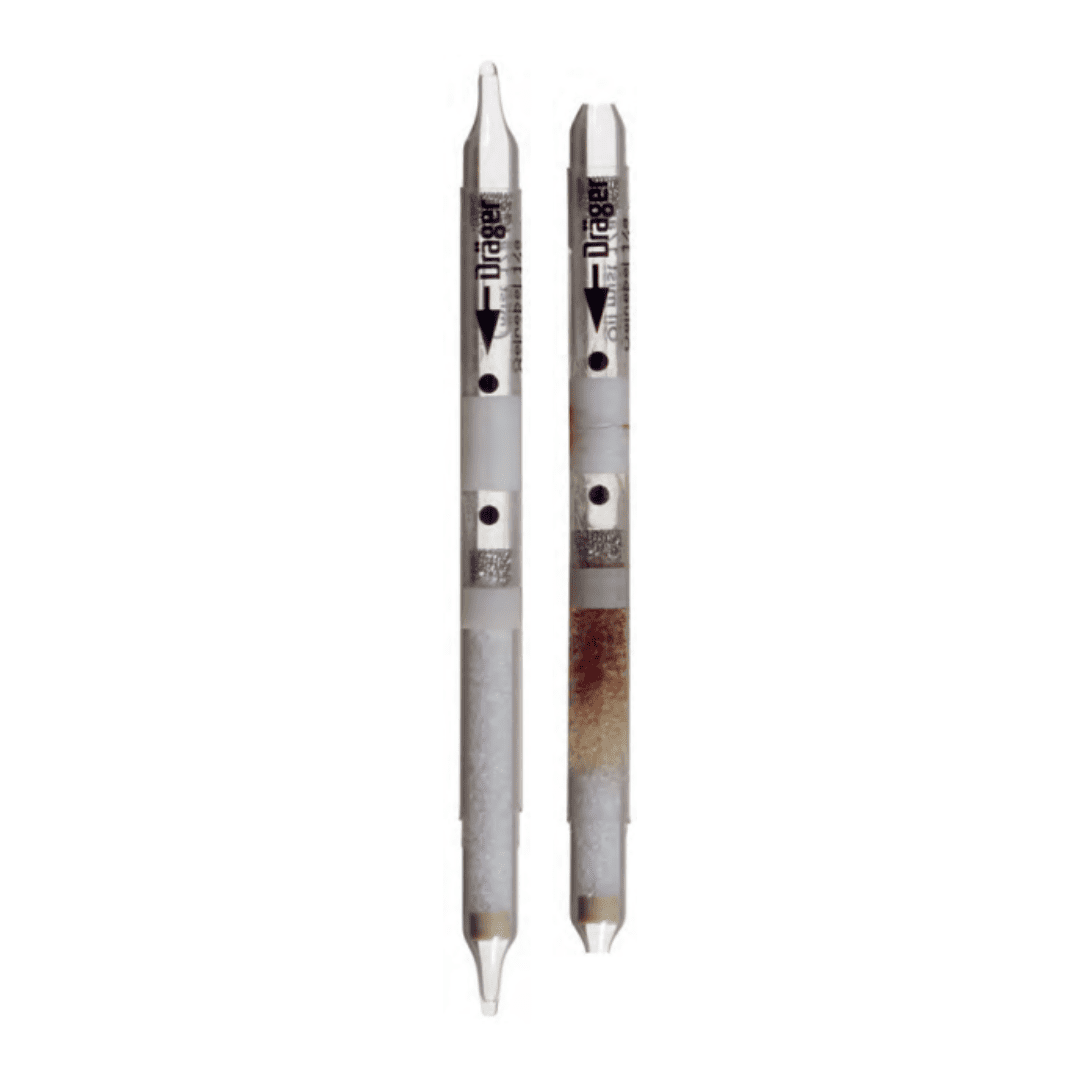

Draeger Tube Oil Mist 1/a 6733031
$99.00
The Draeger Tube Oil Mist 1/a 6733031 has a measurement range of 1 – 10 mg/m3. During measurements, color changes on the tube indicate the concentration level of the hazardous substance.
- Box of 10 tubes
- 2 year shelf life
Description
The Draeger Tube Oil Mist 1/a 6733031 is high precision. The Dräger sampling tubes and systems provide very reliable results, even with complex compounds and mixtures of substances.

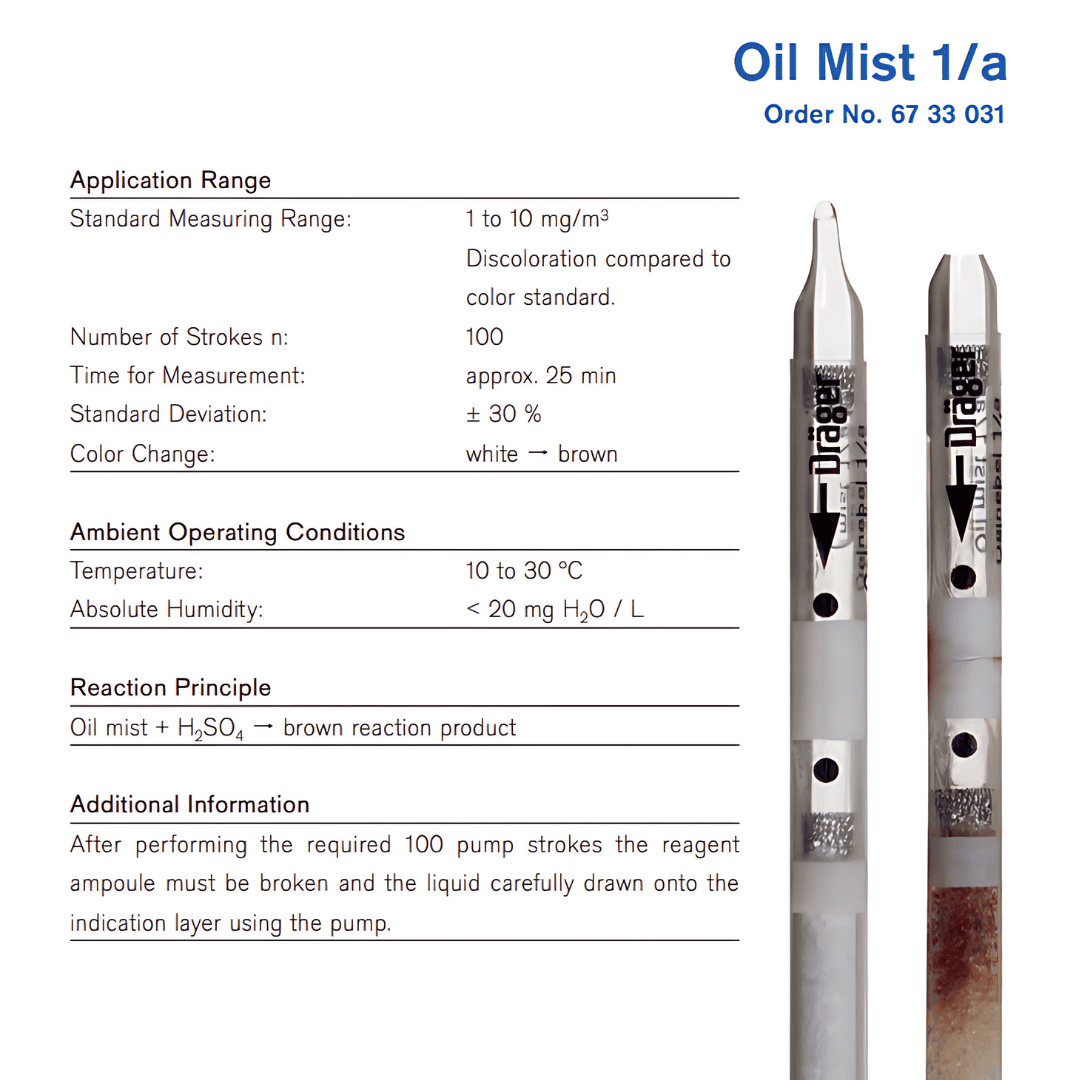

Application Range
- Standard Measuring Range: 1 to 10 mg/m3 Discoloration compared to color standard
- Number of Strokes n: 100
- Time for Measurement: approx. 25 min
- Standard Deviation: ± 30 %
- Color Change: white → brown
Ambient Operating Conditions
- Temperature: 10 to 30 °C
- Absolute Humidity: < 20 mg H20 / L
Reaction Principle
- Oil mist + H2SO4 → brown reaction product
Draeger Oil Mist 1/a Tubes – 6733031
Additional Information
After performing the required 100 pump strokes the reagent ampoule must be broken and the liquid carefully drawn onto the indication layer using the pump.
Accurate and reliable results
Draeger-Tubes with the Accuro Pump deliver the most accurate results. 60+ years of manufacturing colorimetric tubes. The bellows pump design delivers consistent volume. Individual calibration of each batch of Draeger gas detection tubes Oil Mist included, accomplishes quality assurance. Every batch undergoes testing at regular intervals, throughout the two year shelf life, to guarantee accuracy over the entire life of the tubes.
Suitable for complex cases
Draeger sampling tubes and systems allow identification and measurement of different substances even under difficult conditions. Very complex mixtures of substances or cases in which several similar substances are present at the same time can be measured accurately with Draeger Tubes.
Dräger accuro
Fast measurement with one hand: The Dräger-Tube pump accuro allows you to use the established Dräger-Tubes to take measurements under extreme conditions. The easy to use Draeger Tube 6733031 Oil Mist 1/a has already undergone calibration. It forms a perfect unit with the Dräger-Tube pump including the Draeger Safety Oil Mist Tube.
- Dräger Accuro Pump info here >>
- Draeger Hard-Side Accuro Pump Kit info here >>
 |
 |
 |
| Oil Mist Draeger Tubes & CMS Handbook | App Store – Draeger Tubes App | Play Store – Draeger Tubes App |
What are Draeger Tubes?
Dräger-Tubes are glass vials that contain a chemical reagent that reacts to a specific chemical or family of chemicals. Draeger detector tubes are a cost-effective, fast, and reliable way to measure toxic gases anywhere.
Draeger Tube Oil Mist 1/a Gas Detection Tube 6733031
For more information about this ethylene oxide gas detector tube, contact us today +1(805) 617-0987.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 2 × 2 in |
