Radiation Alert Monitor 200

$565.00

The Radiation Alert Monitor 200 measures alpha, beta, gamma, and x-rays. It has a digital, easy to read backlit display, a red count light, and a beeper that sounds with each count detected. This radiation measurement device also includes an adjustable timer and a loud, customizable alert.

Meets Cal OES MEL 4.1.2 requirements (see below)

Add to quote
SKU: RMD-RAM200 Category: Tag:

Description

The Radiation Alert Monitor 200 is your reliable solution for precise and versatile radiation detection. This advanced device measures alpha, beta, gamma, and x-rays, delivering accurate readings that can be displayed in your preferred unit of measurement. Choose from CPM, CPS, μSv/hr, mR/hr, or accumulated counts to suit your needs.

This includes Carrying Case, Xtreme Boot, Lanyard, Stand, Batteries, Mini-USB Cable, Observer USB Software Download, Observer BLE App

The Monitor 200 goes beyond providing on-the-spot readings; it also features internal memory for data storage. Included with your purchase is the free Observer USB Software (compatible with Windows), allowing you to easily download and manage your data, as well as set up computer alarms for added convenience.

Key Features

  • Detects alpha, beta, gamma, and x-rays for comprehensive safety
  • Backlit display ensures clear readings, even in low-light environments
  • Red light flashes and an audible beep signals each detected count
  • Customizable alert levels and timer for tailored monitoring
  • Free software for data downloads, alarm settings, and calibration
  • Includes a 1-year warranty covering parts and labor

Detector

The halogen-quenched GM tube features a thin mica end window with a density of 1.5-2.0 mg/cm². The effective window diameter is 0.360 inches, and the side wall has a thickness of 0.012 inches.

Operating Range

  • mR/hr – .001 (1µR) to 200 mR/hr
  • µSv/hr – .01 to 2000
  • CPM – 0 to 235,400
  • CPS – 0 to 3923
  • Total Counts – 1 to 9,999,000 counts
Radiation Alert Monitor Manual PDF Hazmat Resource

Radiation Alert Monitor 200 Manual PDF >>

Alert Monitor 200 Radiation Detector >>

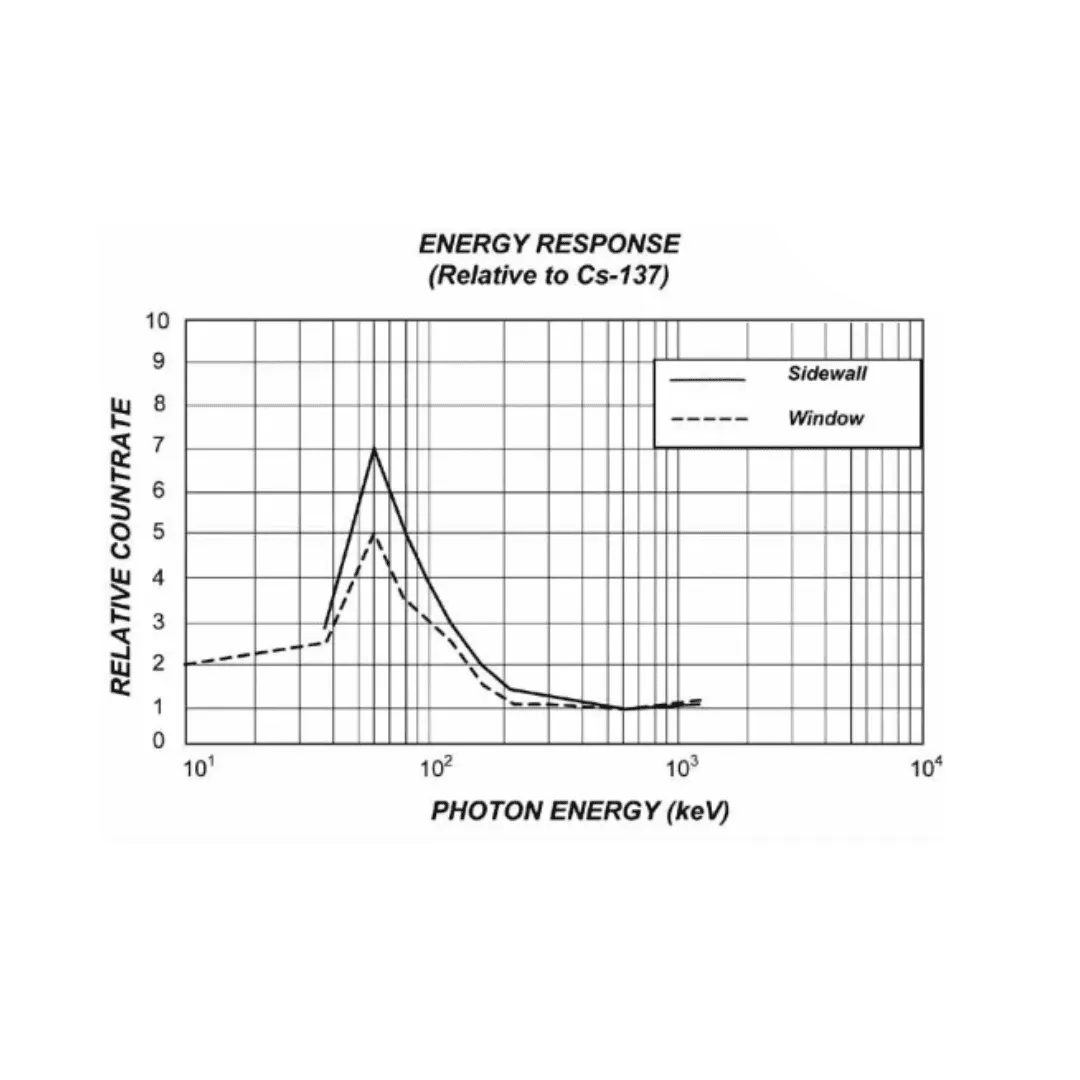

SE Radiation Alert Energy Sensitivity

  • 1070 CPM/mR/hr referenced to Cs137
  • Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%.
  • Detects beta at 50 keV with typical 35% detection efficiency.
  • Detects beta at 150 keV with typical 75% detection efficiency.
  • Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the case.
    (Ref to Cs137)

Accuracy of Radiation Detector Device

Referenced to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional

Radiation Alert Radiation Survey Meter Anti-Saturation

Readout will OVERRANGE in radiation fields as high as 100 times the maximum reading.

Selectable Alert Set Range

mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.



DisplayGraphic LCD with Backlight.
Count LightRed LED flashes with each count.
Audio IndicatorSounds with each count (can be switched off for silent operation)
OutputsUSB for use with Observer USB Software Family
Power RequirementsTwo AA alkaline batteries (included)
Temperature Range-10° to +50°C (14° to 122°F)
Humidity10% to 70% Non-Condensing.
Battery LifeApprox. 800 hrs @ background
Size140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)
Weight6.4 oz (0.4 lbs.)
OptionsNIST Calibration
Limited Warranty1 year limited warranty

For more information about this product, contact us today! +1 (805) 617-0987

Cal OES MEL List – Firescope Hazardous Materials Minimum Equipment List (MEL)

This product meets the requirements for the Firescope MEL List. To see all of the MEL products that HAZMAT Resource provides, visit our California MEL List page >>

Cal OES MEL 4.1.2 SURVEY METER, BETA: Capable of detecting beta particles (50 keV at 45% efficiency or 150 keV at 80% efficiency), with variable visual display readout in Roentgen and milli-Roentgen per hour, and includes counts per minute/counts per second scale.

Requires one SE radiation alert monitor for Type 1, Type 2, and Type 3 teams. “Combination” survey meter will also satisfy requirement.

Hazmat Resource can help you select products, creating quotes and support - until equipment is in your hands and ready to use!

Contact us and we’ll get you handled fast!
KAPPLER | DRÄGER | TELEDYNE FLIR | AVON | HAZCAT . . . just to name a few . . .
Email us at sales@hazmatresource.com
Fast Quote

For more information about the available S.E. International Radiation Alert RANGER Series Digital Radiation Detectors and accessories needs contact us today!

Radiation Alert Monitor 200

A radiation monitoring device is used to detect, measure, and monitor radiation levels in various environments to ensure safety and compliance with regulatory standards. The main purposes of such devices include:

  • Safety Assurance
  • Regulatory Compliance
  • Environmental Monitoring
  • Occupational Health
  • Emergency Response
  • Research and Development

Additional information

Weight 1 lbs
Dimensions 8 × 4 × 4 in
