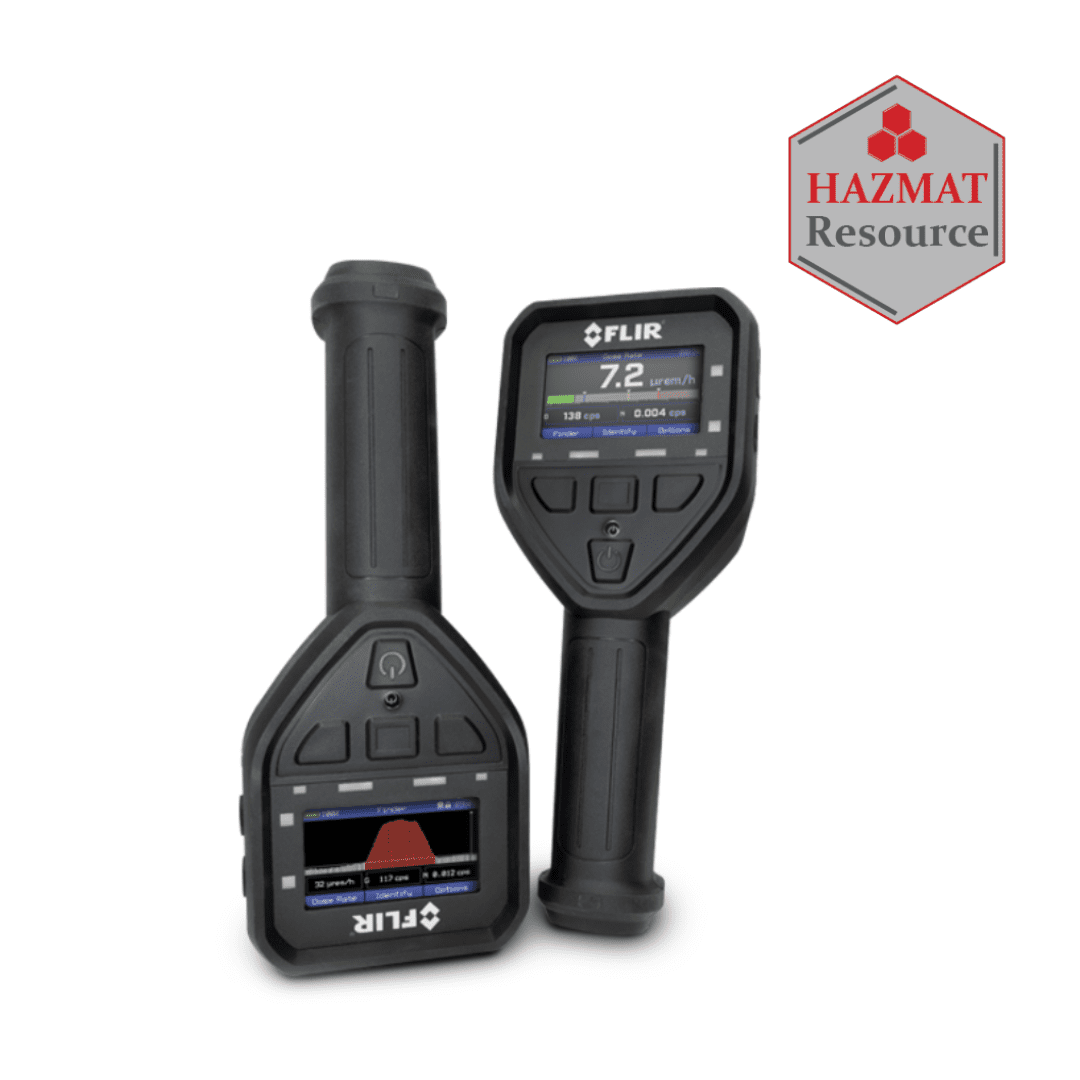

FLIR identiFINDER R425 Radionuclide Identification Device (RID)
The FLIR identiFINDER R425 Radionuclide Identification Device (RID) provides precise 360° coverage even in extremely high gamma fields. With the familiar user interface and intuitive 3-button control, the R425 allows you to quickly operate, communicate results, and take command, even remotely.
Meets Cal OES MEL 4.1.1 requirements ( see below )
Description
The FLIR identiFINDER R425 Radionuclide Identification Device (RID) is the latest evolution of the most widely used radionuclide identification device. Enhancements in the R425 include a higher resolution detector option, increased dose rate capacity, and a durable glass screen cover for scratch resistance. This lets users locate and measure gamma and neutron radioactive sources with confidence. It builds on FLIR’s trusted algorithms with advanced heuristics and hybrid identification techniques.
Hazmat responders can use it to communicate results. This allows them to take command of any situation, in any environment, remotely. Other systems fail in extremely high gamma fields. In contrast, the identiFINDER R425 provides pinpoint accuracy and remains fully operational.
Ask about the Teledyne FLIR identiFINDER R425 UW [Under Water] which brings radionuclide detection and identification capabilities to waterproof decontamination & maritime operations.
Proven Technology for Reliable Early Warning Field Detection
- Advanced heuristics and hybrid identification techniques
- Internal battery lasts up to 12 hrs
- Ready in ≤20 seconds from cold start

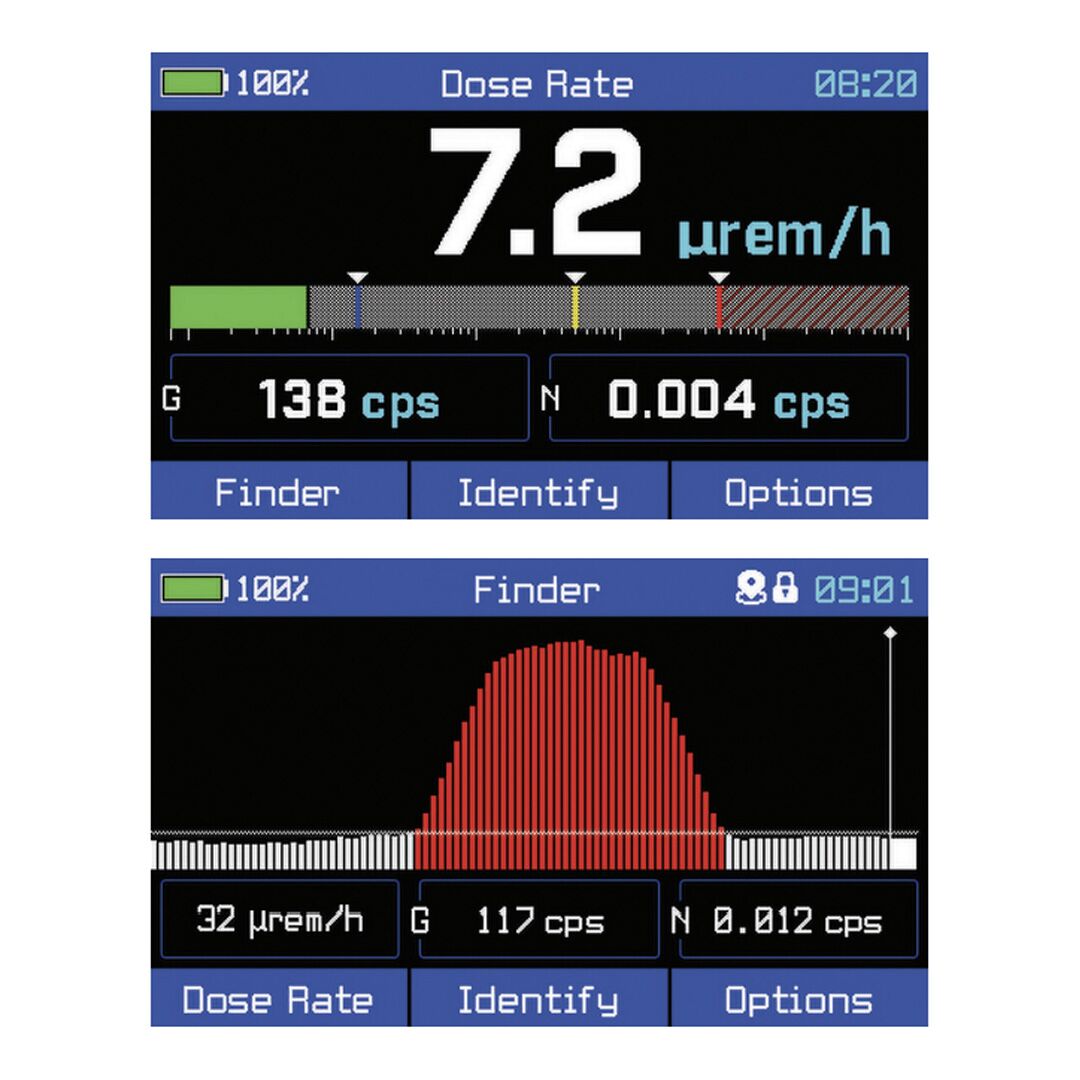

- Sunlight readable screen; visible through polarized glasses
- Established FLIR GUI and 3-button control
- FLIR RAD Mobile App
- Built-in Bluetooth and GPS
Better Detection in All Directions
This FLIR identiFINDER R425 radionuclide identification device model has a new cubic detector design, sourceless stabilization, advanced heuristics, and hybrid identification techniques. This enables high performance detection in all directions. It has 3x more sensitive gamma and 2x more sensitive neutron detection.
Power Through Your Mission
IP67-rated, ergonomic design is 15% lighter than previous generations. It also has exceptional 12-hour battery life. This provides the right balance for a variety of missions.
Situational Awareness And Support When You Need It
Stay connected and in control with remote data viewing, operation, and reach-back capabilities. The identiFINDER R425 offers seamless communication through dual USB-C ports, Teledyne FLIR’s reliable web interface, the Teledyne FLIR RAD Mobile App, and a universal API for easy integration with user-deployed networks.
FLIR RIID R425 identiFINDER
Enclosure & Protection
Plastic injection with rubber overmold; protection rating IP67 according to IEC 60529 ; MIL STD 810G (Salt Fog) compliant. Call or request a quote for the best FLIR identiFINDER R425 price!
FLIR identiFINDER R425 Next Generation Radionuclide Identification Device | |
| Technology | Radionuclide identification device (RID); Gamma and Gamma/Neutron Models |
| Gamma Detector – Nal (TI) | 1.77 x 1.77 x 1.77 in (45 x 45 x 45 mm) cubic detector with silicon photomultiplier (SiPM) |
| Neutron Detector – ZnS (GN model only) | 27 x 58 x 5 mm moderated panels (2 each) |
| Energy Range (Gamma) | 25 keV – 3 MeV |
| Gamma Sensitivity (Cs-137) | 1610 cps/μSv/h |
| Neutron Sensitivity | > 4 cps/nv |
| Gamma Spectrum Length | 1024 channels |
| Dose Rate Range (Cs-137) | 100 nSv/h – 50 uSv/h ±10 % |
| Dose Rate Range ID Mode (Cs-137) | 0 nSv/h – 50 uSv/h |
| Overload Dose Rate Range | 50 uSv/h – 10 mSv/h |
| Stabilisation | Sourceless gain stabilisation |
| Linearization | Real time linearization of gamma energy |
| Typical Resolution | ≤ 7% FWHM at 662 keV (20˚C) |
| Service Interval | 5-year factory maintenance |
| Sampling & Analysis | |
| Sample Introduction | Absorption of EM gamma and neutron emissions |
| Threats | Detects gamma and neutron radiation emitted from natural occurrences in the environment, special nuclear material, industrial, or medical material |
| Nuclide Identification | According to ANSI N42.34 |
| Library Categories | SNM, IND, MED, NORM |
| Sampling & Analysis | From a few seconds to minutes |
| System Interface | |
| Display & Alerts | 2.7″ diagonal (400×240 pixels) screen; sunlight readable; visible through polarised glasses |
| Communication | USB-C (2x), Bluetooth (BLE 5.0) |
| Data Storage | 8GB internal memory |
| Training Requirements | <10 mins for operator; 1 hour for advanced user |
| Software | On-board webserver software |
| Data File Format | According to ANSI N42.42 |
| Power | |
| Input Voltage | 100-240 AC (wall adapter and USB-C cable supplied) |
| Battery Specifications | Internal Li-ion cells; additional userselectable external battery (1 each 16650 Li-ion or 2 each CR123); hot-swappable |
| Cold Start Time | ≤20 seconds from cold start |
| Environmental | |
| Operating Temperature | -22 to 140 °F (-30 to 60 °C) |
| Operating Humidity | 10 to 93%, non-condensing |
| Storage Temperature | 14 to 95 °F (-10 to 35 °C) |
| Physical Features | |
| Dimensions (L x W x H) | 235 x 100 x 95 mm |
| Weight | ≤1.2 kg |
Cal OES MEL List – Firescope Hazardous Materials Minimum Equipment List (MEL)
This product meets the requirements for the Firescope MEL List. To see all of the MEL products that HAZMAT Resource provides, visit our California MEL List page >>
Cal OES MEL 4.1.1 SURVEY METER, GAMMA: Capable of detecting gamma radiation (10 keV), with visual display meter 0.001 milli-Roentgen to 1 Roentgen per hour scale, and includes counts per minute/counts per second scale (0-60,000CPM)
Requires one unit for Type 1, Type 2, and Type 3 teams. “Combination” survey meter will also satisfy requirement.
Hazmat Resource can help you select products, creating quotes
and support - until equipment is in your hands & ready to use!
KAPPLER | DRÄGER | TELEDYNE FLIR | AVON | HAZCAT . . . just to name a few . . .
About Teledyne FLIR
Teledyne FLIR specializes in the design, manufacturing, and distribution of technologies aimed at enhancing perception. Through the implementation of innovative sensing solutions, the company integrates thermal imaging, visible-light imaging, video analytics, measurement and diagnostics, and advanced threat detection systems into various aspects of daily life.
With a focus on applications in first response and military operations, Teledyne FLIR’s products play a vital role in protecting and preserving lives. The company is dedicated to bolstering public safety, promoting well-being, and improving energy and time efficiency through its cutting-edge technological solutions.
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
FLIR identiFINDER R425 RID
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 4 × 4 in |
| Options | R425-GN, R425-G, R425-LG, R425-LGN, R425-UW-G, R425-UW-GN, R425-UW-LG, R425-UW-LGN |
