Name: Dräger X-am External Pump 8327100
SKU: 8327100
Availability: InStock

Sale!

Dräger X-am External Pump 8327100 HAZMAT Resource

Dräger X-am External Pump 8327100

Original price was: $527.00.Current price is: $474.30.

The Dräger X-am External Pump 8327100 is a pump for portable gas detectors. Dräger X-am 2500/2800 and X-am 5000/5600/5800 – designed for clearance
measurement, for example in tanks and shafts. The pump automatically switches on when it is connected to a running X-am device. The change from pump mode to diffusion mode is fast and easy.

SKU: 8327100 Categories: 2 Gas Detection, Dräger X-am 2500 & Accessories, Dräger X-am 2800 & Accessories, Dräger X-am 5000 & Accessories, Dräger X-am 5600 & Accessories, Dräger X-am 5800 & Accessories

Description
Additional information

Description

The Dräger X-am External Pump 8327115 is an accessory designed for use with the portable gas detectors. Which is ideal for clearance measurements in tanks and shafts. It activates automatically when connected to an operating X-am device, and switching between pump mode and diffusion mode is quick and straightforward.

Hazmat Resource can help build a sensor configuration
for your gas detection needs

Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .

Email us at sales@hazmatresource.com

Fast Quote

Easy to use Dräger X-am pump

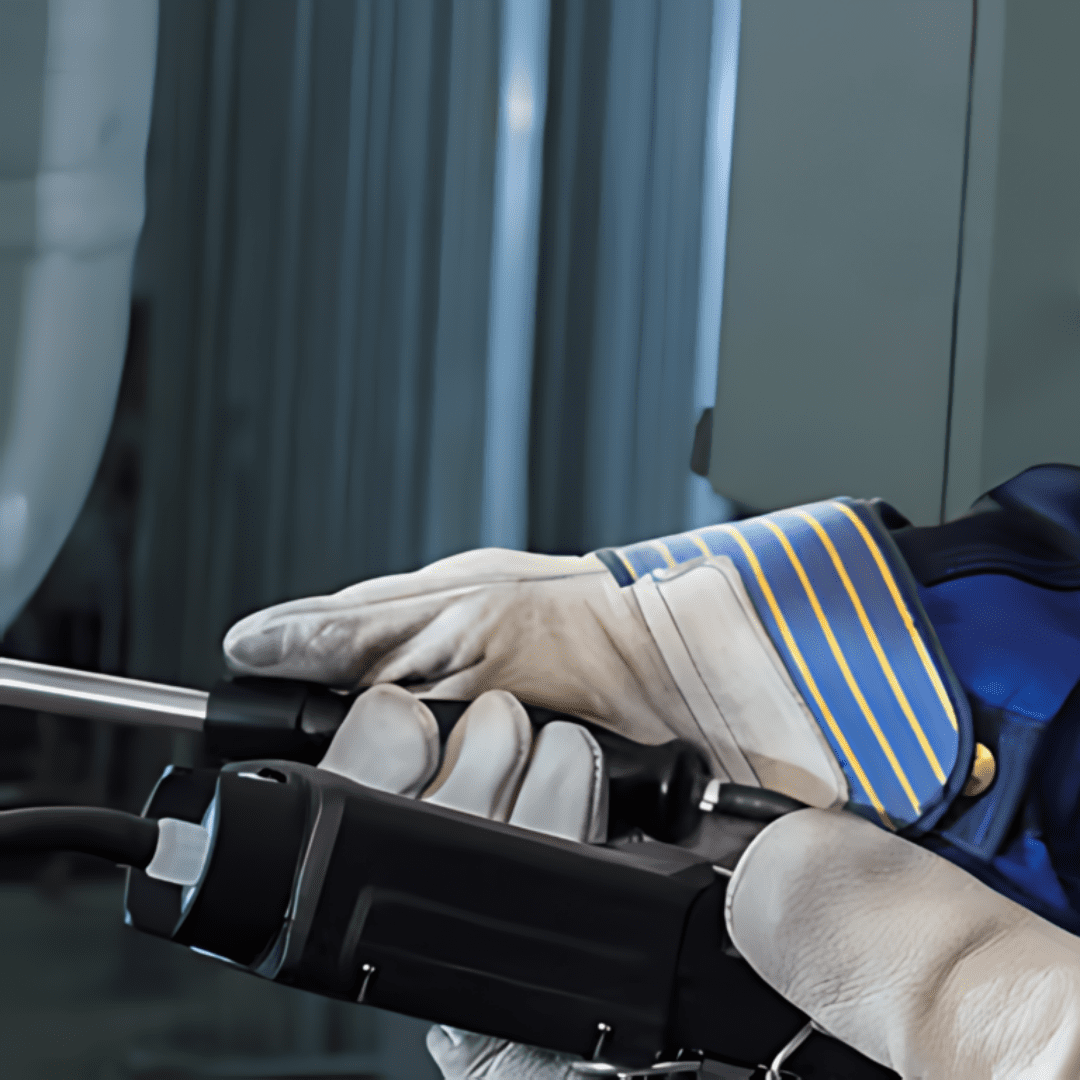

The pump attaches to the X-am 2500/2800 and X-am 5000/5600/5800 and is secured with a clip. Pumping initiates automatically when the pump is connected to a running gas detection device and stops automatically when removed. Using the X-am with the pump does not affect the measuring performance for standard gases.

Charging via USB

The Draeger X-am pump battery can be recharged via a micro USB port, compatible with a standard cellphone charger. An LED on the pump indicates the charge status, and a full charge takes approximately six hours.

Firefighter & Hazmat Teams

Industrial & Commercial

Handy and Robust

With a compact height of 17.5 cm and a weight of just 200 g, the pump is easy to carry and store. The Dräger X-am gas detector pump is dust and water-resistant, meeting the IP67 protection classification, and operates reliably even at temperatures as low as -40 °C. The solid cast battery is designed to withstand damage from drops or impacts.

Effective range of measuring results: with explosion protection

The pump can reach ambient atmospheres in inaccessible locations up to 45 meters away, such as channels, shafts, or tank systems. It is optimized for hoses with a 3 mm diameter, ensuring fast response times and low power consumption.

Using the pump with a X-am device guarantees consistently precise measuring results, even in the most challenging conditions. The pump is approved for explosion protection in Ex zone 0. When combined with the Dräger X-am 2500/2800 and X-am 5000/5600/5800, also approved for Ex zone 0, the X-am pump enables secure and continuous monitoring of enclosed areas.

Long operating time for long deployments

The pump is designed for exceptional durability both externally and internally. Its battery capacity supports up to 20 hours of continuous operation, equating to three workweeks at 8 measurements per day. Conveniently, the operating time of the X-am device is not reduced when the pump is in use. Additionally, the entire pump operating time can be monitored and evaluated using CC-Vision software.

Data logger

The pump’s operating time, charge status, battery warnings, and flow alarms are displayed on the Dräger X-am and recorded in its data logger. This functionality allows for the separate display and evaluation of clearance measurements from personal monitoring data.

Draeger x-am 2500 external pump
Draeger x-am 2800 external pump
Draeger x-am 5000 external pump

Draeger x-am 5600 external pump
Draeger x-am 5800 external pump


Dräger X am Pump Manual PDF	Portable Multi Gas Detector with Pump	Draeger Portable Gas Monitoring Product

Dräger X-am 5000 - Operation with Dräger X-am Pump >>

Dräger X-am 2500 - Operation with
Dräger X-am Pump

About Draeger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion. Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need More Information?
For more information about the available X-am 125 Draeger external pump for multi-gas detector accessories, gas detection devices, and Dräger X am 125 calibration needs contact us today!
