Dräger X-am 5800 Multi-Gas Detector

Sale!
Dräger X-am 5800 Multi-Gas Detector HAZMAT Resource
Multi Gas Detector Dräger X-am 5800 HAZMAT Resource
Dräger X-am 5800 Multi-Gas Detector - Image 3
Draeger Multi Gas Detector HAZMAT Resource

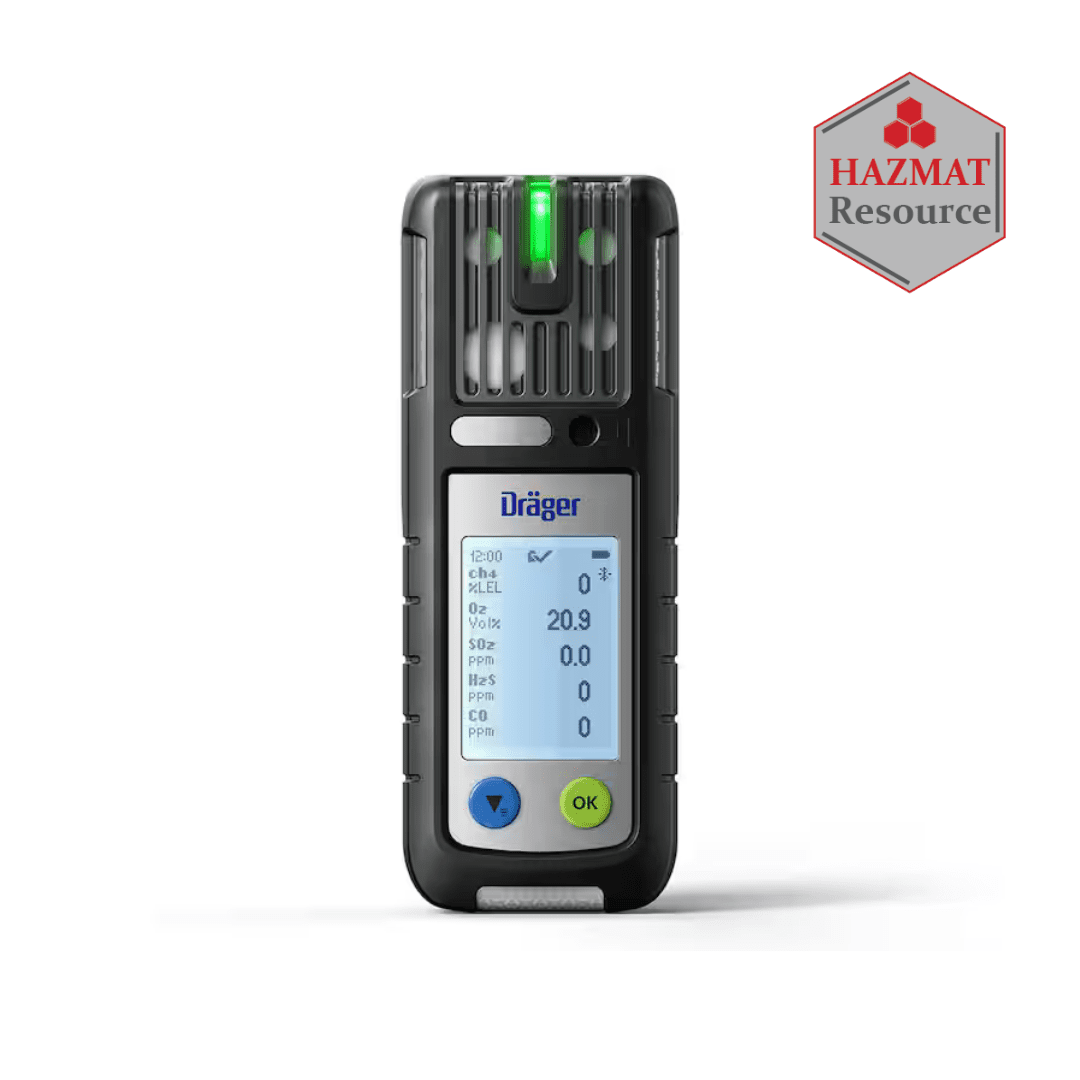

Dräger X-am 5800 Multi-Gas Detector

Original price was: $1,451.00.Current price is: $1,305.90.

The Dräger X-am 5800 Multi-Gas Detector measures up to six gases and is equipped with a particularly shock-resistant CatEx sensor. Transfer date from the device to smartphone to the cloud software. Highly configurable, contact us for your custom quote!

Add to quote
SKU: VN00800 Categories: ,

Description

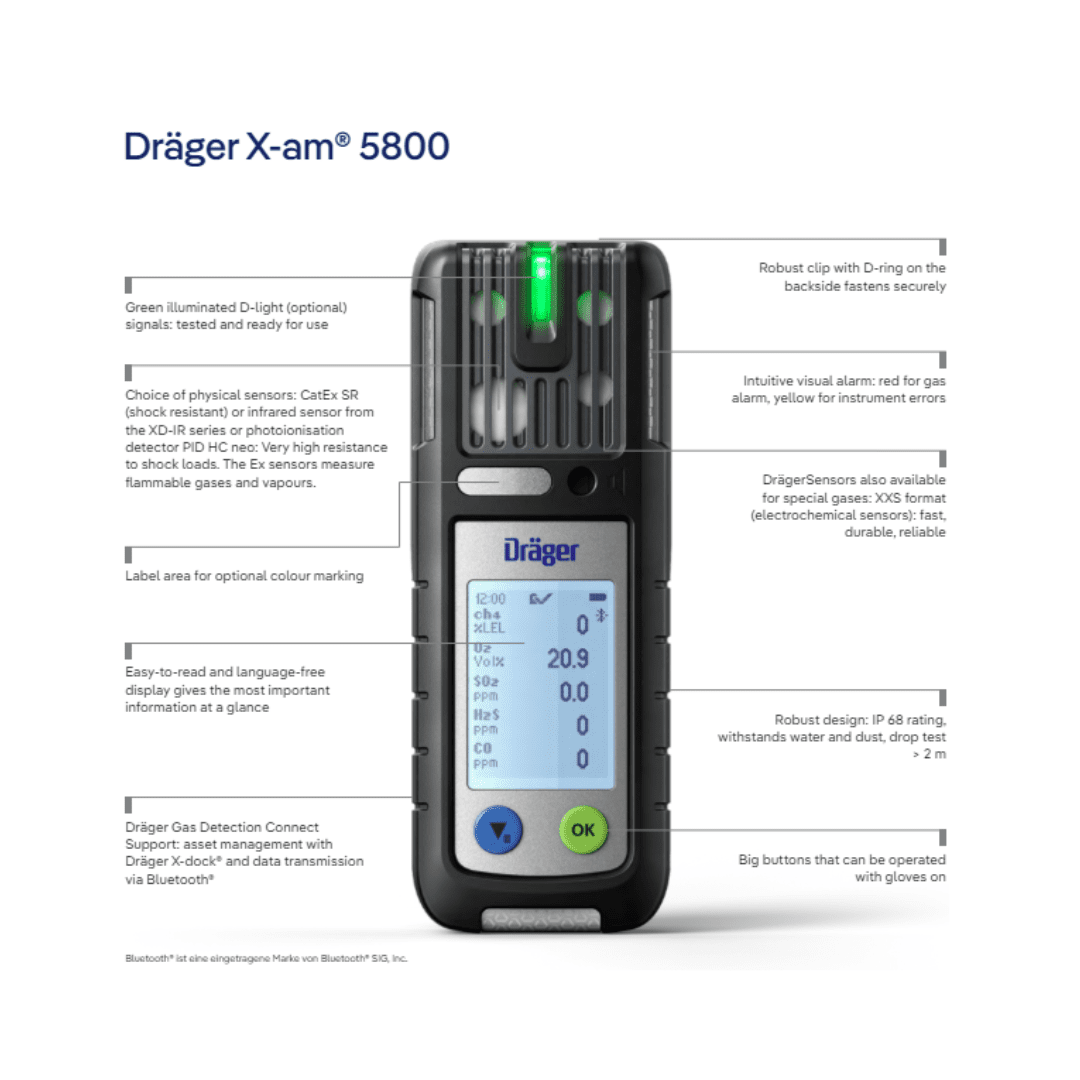

Small and lightweight, the Dräger X-am 5800 Multi-Gas Detector is comfortable to wear and easy to use, even with gloves on, thanks to its large buttons. The display clearly shows important information such as gas readings, alarms, and time. The green D-light indicates that the unit is ready for use.

This configuration includes X-am 5800 6851900 – CatEXSR 6813280 – H2S/CO-LC 6810881 -O2 3703880 NIMH. Contact us for your specific sensor and accessory mix.

Additionally, the language-free menu ensures ease of use and quick familiarization. For enhanced safety, the oxygen channel features four alarm thresholds—real pre-alarms and main alarms for both falling and rising concentrations. Approved for use in Ex zone 0, the Multi-Gas Detector Dräger X-am 5800 has also been tested according to protection class IP 68.

Hazmat Resource can help build a sensor configuration
for your gas detection needs

Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .
Email us at sales@hazmatresource.com
Fast Quote

Key Facts

Measurable gases:
Sensorports:
Number of gases:
Applications:
Sensor technology:

1 x CatEx / XD-IR / PID neo / 3 x XXS (1 x Dual XXS) 30 sensors)
4
1 – 6
Personal Air Monitoring + Confined Space Entry
CAT + EC

Fire Department Multi Gas Detector HAZMAT Resource

Firefighter & Hazmat Teams

Multi-Gas Detector Dräger X-am 5800 HAZMAT Resource

Industrial & Commercial

Tailor-made Gas Monitoring

Small and lightweight, the X-am 5800 6 gas detector for hazmat is comfortable to wear and easy to use, even with gloves on, thanks to its large buttons. The display clearly shows important information such as gas readings, alarms, and time. The green D-light indicates that the unit is ready for use. Additionally, the language-free menu makes it simple to operate and easy to familiarize yourself with.

For added safety, the fire department multi gas detector X-am 5800 features an oxygen channel with four alarm thresholds, including real pre-alarms and main alarms for both falling and rising concentrations. Approved for use in Ex zone 0, it has also been tested according to protection class IP 68, ensuring robust performance in demanding environments.

Draeger Sensors - Durable and Powerful Gas Monitor

The new CatEx sensor offers numerous advantages: readiness for calibration within seconds, extreme robustness against shocks, and the capability to measure flammable vapors such as petrol, diesel, and nonane. Additionally, you can set the measurement gas to methane, propane, hydrogen, and many other gases. The sensor’s performance is enhanced by Dräger’s simple cross calibration concept, allowing the measurement gas, calibration gas, and bump test gas to be specified individually. Upon testing, the X-am 5800 then handles the necessary conversions. The sensor is designed to meet the demanding requirements of the new IEC standard 60079-29-1 (International Electrotechnical Commission).

Furthermore, the CatEx sensor is resistant to poisoning substances such as silicones and other harmful chemicals, making it exceptionally reliable. With years of experience in sensor technology, Dräger develops and produces the sensors in-house, including the powerful and durable electrochemical sensors in the XXS format. This ensures that the sensors and the device are perfectly matched, saving you operating costs with a competitive Dräger X-am 5800 price.

We are also currently developing a durable, power-saving infrared sensor to measure flammable gases and vapors and/or carbon dioxide, as well as a photo-ionization detector sensor for measuring volatile organic compounds (VOCs). These can be used as alternatives to the CatEx sensor, providing even more versatility and efficiency.

Draeger X-am 5800 Multi-Gas Detector HAZMAT Resource

Data Management - Bluetooth & Cloud

Portable Multi Gas Detector HAZMAT Resource

Fleet Management

Powerful Data Analysis in the Cloud

Safety and efficiency are enhanced thanks to its networking capability. Transfer your recorded data directly via Bluetooth to a smartphone, and from there to the backend of the Gas Detection Connect software. Alternatively, you can transfer the data directly to the cloud using the X-dock test station. This setup provides secure access to your data and its analysis at any time and from anywhere, simply through your internet browser.

Comfortable asset management

With the Draeger multi gas detector, you can manage your fleet of equipment comfortably and efficiently in daily use. Save operating costs and time through fast tests using the automatic test station X-dock with low gas consumption or a purely mechanical bump test station. Additional advantages include powerful fleet management via our smart software solution, convenient firmware updates in the X-dock, an optional RFID transponder, and individual color marking of the devices. Few, easy-to-replace spare parts, including the power supply, and durable sensors ensure that your devices remain operational for many years. Dräger provides a 4-year manufacturer’s warranty on the basic device. Existing relevant accessories from its predecessor, the X-am 5800, can continue to be used.

Detect 79 Substances

  • 1,2-Dimethylbenzene
  • 1,3-Butadiene
  • 1-Methoxy-2-propanol
  • 2-Butanone
  • 2-Methoxy-2-methyl-propane
  • 2-Methyl-2-propanethiol
  • 2-Propanol
  • 2-Propenenitrile
  • Acetaldehyde
  • Acetic Acid
  • Acetic acid butyl ester
  • Acetic acid ethenyl ester
  • Acetone
  • Acetylene
  • Ammonia (anhydrous)
  • Ammonia solution 25%
  • Arsine
  • Benzene
  • Bromine (gaseous)
  • Carbon dioxide
  • Carbon monoxide
  • Chlorine
  • Chlorine dioxide
  • Cyclohexane
  • Cyclopentane
  • Diborane
  • Diesel fuel
  • Diethylamine
  • Dimethyl disulfide
  • Dimethyl sulphide
  • Dimethylamine (anhydrous)
  • Epichlorohydrin
  • Ethane
  • Ethanol
  • Ethyl acetate
  • Ethyl ether
  • Ethyl mercaptan
  • Ethylamine
  • Ethylene
  • Ethylene oxide
  • Fluorine
  • Formaldehyde
  • Hexane
  • Hydrogen
  • Hydrogen cyanide (anhydrous)
  • Hydrogen selenide (as Se) (anhydrous)
  • Hydrogen sulphide
  • i-butene
  • Liquified petroleum gas (L.P.G.)
  • Methane
  • Methanol
  • Methyl mercaptan
  • Methyl methacrylate
  • Methylamine (anhydrous)
  • n-Butane
  • n-Butanol
  • n-Heptene
  • n-Pentane
  • Nitric oxide
  • Nitrogen dioxide
  • Nonane
  • Octane
  • Oxygen
  • Ozone
  • Petrol (unleaded)
  • Phosgene
  • Phosphine
  • Propane
  • Propylene
  • Propylene oxide
  • Silane
  • Styrene
  • Sulphur dioxide
  • Tetrahydrofuran
  • Tetrahydrothiophene
  • Toluene
  • Triethylamine
  • Trimethylamine (anhydrous)
  • Vinyl chloride
Draeger X-am 5800 Manual PDF BrochureDraeger Portable Gas Monitoring Product Family PDFDraeger X-am 5800 Manual PDF Brochure
Dräger X-am 5800 User Manual PDF BrochureDraeger Portable Gas Monitoring Product FamilyDräger X-am 5800 Technical Manual

Focus on Sustainability

During the development of the X-am 5800 6 gas detector for industrial use, great importance was given to sustainability. The device boasts an unlimited service life, with durable DrägerSensors and a rechargeable power supply that can be easily replaced with just one screw. Almost all spare parts can be replaced by trained users, while all remaining parts can be repaired by Dräger Service. Furthermore, existing accessories from the previous series can still be used.

Environmental protection has also been considered in the technical documentation and packaging. The documentation is designed to save paper, and when you order two or more units, the number of instructions for use documents can be reduced by choosing the configurator version. For your convenience, Dräger 6 gas monitor also takes back old devices and ensures that they are recycled properly.

Dräger X-am 5800
Portable Gas Detection >>

How-To: X-dock Assembly
of Master and Modules >>

About Draeger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion. Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need More Information?

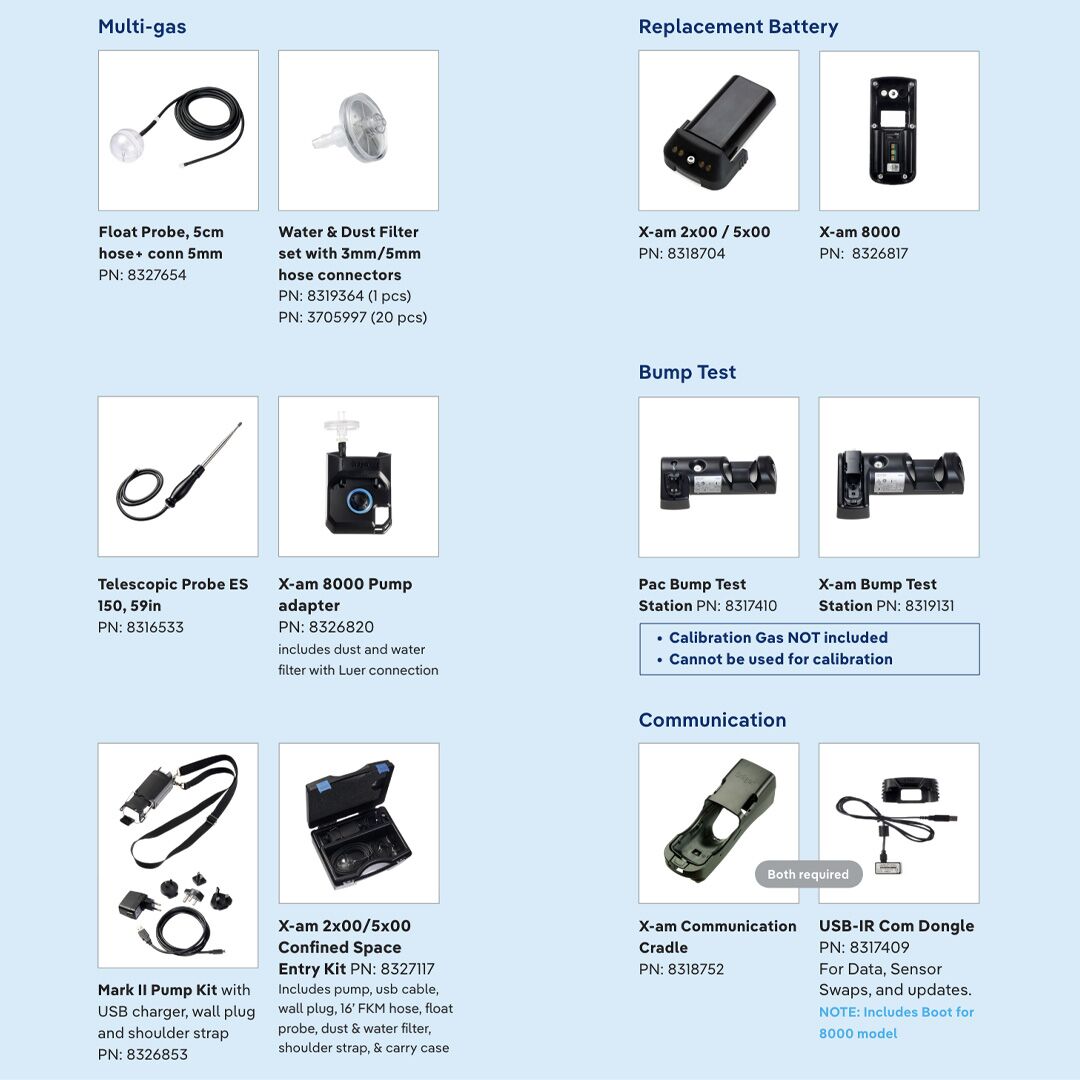

For more information about the available X-am 5800 firefighter 6 gas detector accessories, gas detection devices, and Dräger X-am 5800 calibration needs contact us today!

Dräger Up with the Dräger multi gas detector!

Additional information

Weight 2 lbs
Dimensions 12 × 6 × 6 in
