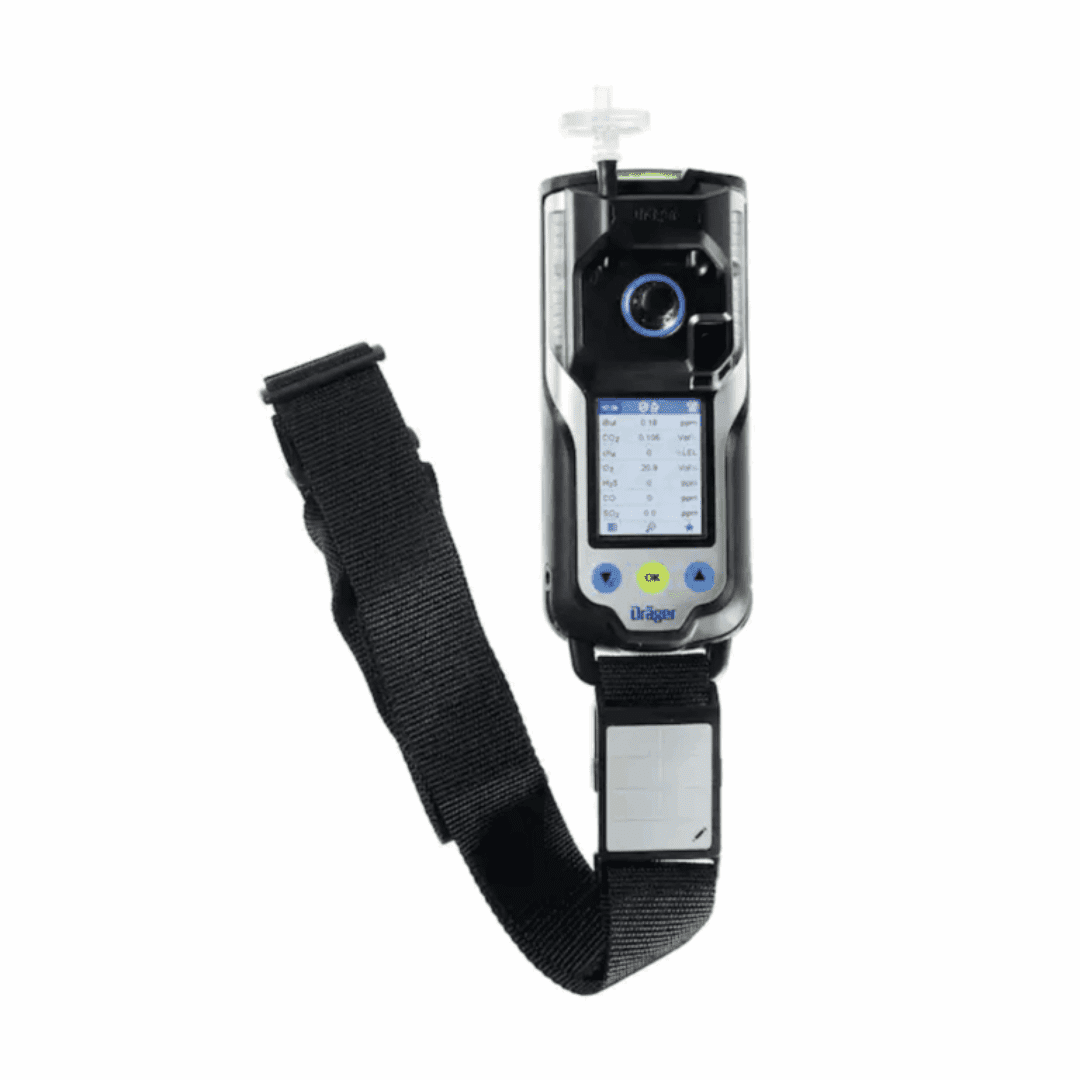

Draeger X-am 8000 Gas Detector – Multi-Gas

Sale!
Draeger X-am 8000 Gas Detector - Multi-Gas Hazmat Resource
Dräger X-am 8000 Multi-Gas Detector Hazmat Resource
draeger X-am 8000 Multi Gas Detector Hazmat Resource
Dräger X am 8000 User Manual PDF Hazmat Resource

Draeger X-am 8000 Gas Detector – Multi-Gas

Original price was: $3,470.00.Current price is: $3,123.00.

The Draeger X-am 8000 Gas Detector – Multi-Gas is a 1 to 7 gas detector which detects toxic and flammable gases as well as vapors and oxygen all at once. Dräger has an extensive selection of devices and accessories, we’ll help quote the best system for your needs. Call or email today for expert guidance.

Meets Cal OES MEL 2.1.1, 2.2.1 & 2.2.2 requirements (see below)

Add to quote
SKU: 8325800 Categories: , Tag:

Description

With the Draeger X-am 8000 Gas Detector – Multi-Gas clearance measurement has never this easy and convenient. The 1 to 7 gas detector detects toxic and flammable gases as well as vapors and oxygen all at once – either in pump or diffusion mode. Innovative signaling design and handy assistant functions ensure complete safety throughout the process.

The Draeger X-am 8000 is a 1 to 7 gas detector. It measures for toxic and flammable gases, Oxygen, and volatile organic compounds. It has the ability to operate in diffusion mode or with the internal pump.

Dräger X-am 8000 Multi-Gas Detector

This X-am 8000 device includes Battery, Shoulder Strap, Internal Pump, Pump Adaptor, Inductive Charger and Power Supply.

Key Facts

Measurable gases:
Sensorports:
Number of gases:
Applications:
Sensor technology:

Ex, CO2, O2, CO, H2S, NO2, SO2, VOC (PID) + (choice out > 40 sensors)
5
1 – 7
Personal Air Monitoring + Confined Space Entry + Area Monitoring
CAT + IR + PID + EC

Gas Monitoring Functions

  • Five sensor slots to measure up to seven gases
  • Three-button, one-hand operation
  • Rechargeable Li-Ion battery with induction charging
  • Internal pump that activates when the pump adapter engages
  • Pump draws sample from up to 45 m (147 ft.)

Multi-gas detector

  • 1-to-7 Gas Detection Device
  • Designed for clearance measurements and capable of detecting toxic gases, combustible gases, vapors, and oxygen.

Specially designed for use with a pump, optimised for clearance measurement

The Dräger X-am 8000 features a high-performance pump capable of operating with hoses up to 45 meters long. A convenient pump adapter allows you to switch between diffusion and pump mode at any time, activating the pump only when needed—saving energy, minimizing wear, and extending its service life.

Compact and rugged, the product is built for one-handed operation with three easy-to-use function keys. Its bright, full-color display clearly shows all essential information at a glance. For those comparing options, the Draeger X am 8000 price offers strong value for advanced multi-gas detection in tough environments.

This draeger x-am 8000 multi gas detector also includes advanced software features, such as the ability to switch measurement gases for the PID, CatEx, and IR sensors during operation. A built-in library and user-friendly assistant allow you to hide unused sensor channels, customizing the device to suit your specific monitoring task. Standard accessories include a durable shoulder strap for comfortable transport. Built to last, the X-am 8000 performs reliably even in the toughest environments.

Dräger X am 8000 Calibration Hazmat Resource

Draeger Oxymixer Application

Draeger X am 8000 Price Hazmat Resource

Clear Signal Design

Clearance measurement, release and documentation in no time

The X-am 8000 is equipped with specialized assistant functions that guide users step by step through a variety of applications. For example, during clearance measurements, the smart assistant calculates the required flooding time for the device and probe (FKM hose), taking into account factors such as the target gases, temperature limits, and the specified hose length. Users also have the option to input custom flooding times.

When monitoring areas with potentially high methane concentrations, an optional automatic range switch simplifies the process. If the Cat-Ex sensor detects values above 100% LEL, the display automatically switches to the 0–100 vol% range. A similar dual-range function is available for the IR EX ES sensor, allowing measurement in both %LEL and vol% simultaneously.

For enhanced sensitivity, the DrägerSensor CatEx 125 PR Gas offers a special version designed to measure methane concentrations down to the ppm range.

Additionally, the performance of select sensors—specifically for gases like methane, propane, and n-nonane—has been independently verified under the measurement performance approval standard EN 60079-29-1.

Hazmat Resource can help build a sensor configuration
for your gas detection needs

Draeger has multiple gas detectors with multiple configurations, contact us and we’ll get you handled.
X-AM | X-SITE | X-DOCK | ALL ACCESSORIES . . . just to name a few . . .
Email us at sales@hazmatresource.com
Fast Quote

Clear signalling design

The Dräger X-am 8000 features a signal system designed around a clear, standardized color code, in compliance with EN 60079-29-1, EN 45544-1, and EN 50104:

  • Red light – Gas alarm
  • Yellow light – Device-related warning (e.g. low battery)
  • Green light – Device is operational and ready for use

The device’s D-Light emits a green glow, making it easy to confirm from a distance that the unit has passed testing and is ready for deployment.

When an alarm is triggered, the Draeger 8000 gas detector provides clear alerts via bright, multi-colored LEDs, a powerful audible alarm (100 dB(A) at 30 cm), and strong vibrations. Users can also choose from four preset hazard symbols that visually indicate specific dangers—such as toxic or explosive gases—making it easy to identify the type of hazard at a glance.

To enhance safety further, the X-am 8000 includes an impact detection system. If the device sustains a significant mechanical shock, it records the incident in the event log and data logger, flagging it for inspection. Optionally, the device can be automatically locked following an impact to prevent further use until it has been checked.

Economical Fleet Management

Bump tests and calibrations are fast and easy with the Dräger X-dock calibration station, which minimizes operating costs thanks to its low test gas consumption.

The Dräger Gas Detection Connect software adds powerful functionality to your fleet management, offering detailed reporting and a range of useful features. Devices in the fleet can be identified using either reliable barcodes or the built-in RFID transponder.

Dräger 8000 Manual Hazmat Resource

Real-World Application

Draeger X-am 8000 Calibration Hazmat Resource

Multi-Gas Detector

Inductive charging protects against wear and tear

The X-am 8000 uses inductive charging, making operation more convenient and extending the device’s lifespan. Corrosion and contact issues in the charging cradle are eliminated. Charging and measurement can occur simultaneously (outside explosion-hazard zones), such as during use in vehicles or on machinery.

The charging cradles are space-saving and link together easily. They’re also compatible with existing cradles from the Dräger X-am series.

Specialist for high and low hydrocarbon concentrations

To detect even low concentrations of hydrocarbons, the Dräger X-am 8000 can be equipped with one of two advanced PID sensors. The PID HC sensor measures concentrations from 0 to 2,000 ppm (isobutene), while the PID LC ppb sensor is ideal for ultra-low detection, offering high resolution in the 0 to 10 ppm range, especially below 1 ppm.

For benzene-specific detection, the X-am 8000 can be paired with a pre-tube. This setup offers a major advantage: only one device is needed for the task, significantly cutting down on equipment costs, maintenance, and transport. A built-in assistant guides users through the pre-tube process, and for more detailed instructions, the dräger 8000 manual provides comprehensive step-by-step guidance.

For full technical specifications and detailed sensor configurations, refer to the official Draeger X-am 8000 datasheet.

Dräger X am 8000 User Manual PDF
Portable Gas Detection Family PDF
Dräger Sensors Product Safety Information

Detect 127 Substances

  • 1,2,4 Trimethylbenzene
  • 1,2-Dichlorobenzene
  • 1,2-Dimethylbenzene
  • 1,3,5
  • Trimethylbenzene
  • 1,3-Butadiene
  • 1,3-Dimethylbenzene
  • 1,4-Dimethylbenzene
  • 1,4-Dioxane
  • 1-Bromopropane
  • 1-Butene
  • 1-Hexene
  • 1-Methoxy-2-propanol
  • 2-Butanol
  • 2-Butanone
  • 2-ethoxy-2-methylpropane
  • 2-Methoxy-2-methyl-propane
  • 2-Methoxyethanol
  • 2-Methyl-2-propanethiol
  • 2-Methylbutane
  • 2-Methylpropane
  • 2-Propanol
  • 2-Propen-1-ol
  • 2-Propenal
  • 2-Propenenitrile
  • 3-Chloro-1-propene
  • 3-Pentanol
  • 4-Methyl-2-pentanol
  • 4-Methyl-2-pentanone
  • Acetaldehyde
  • Acetic Acid
  • Acetic acid butyl ester
  • Acetic acid ethenyl ester
  • Acetic acid propyl ester
  • Acetone
  • Acetophenone
  • Acetylene
  • alpha-Pinene
  • Ammonia (anhydrous)
  • Ammonia solution 25%
  • Arsine
  • Benzene
  • Bromine (gaseous)
  • Butanal
  • Carbon dioxide
  • Carbon disulfide
  • Carbon monoxide
  • Chlorine
  • Chlorine dioxide
  • Chlorobenzene
  • Cumene
  • Cyclohexane
  • Cyclohexanone
  • Cyclopentane
  • Di-i-propylether
  • Diborane
  • Dichloromethane
  • Diesel fuel
  • Diethylamine
  • Dimethyl disulfide
  • Dimethyl ether
  • Dimethyl sulphide
  • Dimethylamine (anhydrous)
  • Epichlorohydrin
  • Ethane
  • Ethanol
  • Ethyl acetate
  • Ethyl ether
  • Ethyl mercaptan
  • Ethylamine
  • Ethylbenzene
  • Ethylene
  • Ethylene oxide
  • Fluorine
  • Formaldehyde
  • Furan
  • Heptane
  • Hexane
  • Hydrogen
  • Hydrogen cyanide (anhydrous)
  • Hydrogen selenide (as Se) (anhydrous)
  • Hydrogen sulphide
  • i-butanol
  • i-butene
  • i-butyl acetate
  • Isoprene
  • Kerosene
  • Liquified petroleum gas (L.P.G.)
  • Methane
  • Methanol
  • Methyl bromide
  • Methyl chloride
  • Methyl mercaptan
  • Methyl methacrylate
  • Methylamine (anhydrous)
  • Methylcyclohexane
  • N,N,-Dimethylformamide
  • n-Butane
  • n-Butanol
  • n-Pentane
  • n-Pentanol
  • n-Propanol
  • Nitric oxide
  • Nitrogen dioxide
  • Nonane
  • Octane
  • Oxygen
  • Ozone
  • Petrol (unleaded)
  • Phosgene
  • Phosphine
  • Propane
  • Propylene
  • Propylene oxide
  • Silane
  • Styrene
  • Sulphur dioxide
  • Tetrachloroethene
  • Tetrahydrofuran
  • Tetrahydrothiophene
  • Toluene
  • Trichloroethene
  • Triethylamine
  • Trimethylamine (anhydrous)
  • Vinyl chloride
  • Vinylidene chloride
  • Xylene, all isomers

About Draeger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services.

Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe.

In 2020, the company generated net sales of around EUR 3.4 billion. Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database.

Need more information?

For more information about this product, contact us today! +1 (805) 617 – 0987

We also offer a full range of Dräger X-am 8000 Multi Gas Detector accessories, Dräger x am 8000 calibration services, and gas detection devices – trusted solutions for safety in the Oil & Gas industry.

Draeger X-am 8000 Gas Detector - Multi-Gas

Cal OES MEL List – Firescope Hazardous Materials Minimum Equipment List (MEL)

This product meets the requirements for the Firescope MEL List. To see all of the MEL products that HAZMAT Resource provides, visit our California MEL List page >>

  • Cal OES MEL 2.1.1 CONFINED SPACE OSHA STANDARD FOUR GAS: Continuous monitoring, independent displays, built-in alarms, minimum of ten feet of tubing and sampling wand. (O2 concentration in Percent; Combustible Vapor in percent of LEL; CO concentration in ppm; H2S concentration in ppm). Calibrated to manufacturers specifications. Intrinsic to UL #913 Requires 1 each for Type 1, Type 2, and Type 3 teams.
  •  Cal OES MEL 2.2.1 TOXIC VAPOR, IN PPM: Capable of detecting combustible atmospheres (VOC – Volatile Organic Compounds) and toxic vapors (TIC – Toxic Industrial Compounds); Resistant
    to damage from chlorinated hydrocarbons; Data downloadable to computer. May be suitable for Benzene ring substances. Requires 1 each for Type 1 and Type 2 teams.
  • Cal OES MEL 2.2.2 AROMATIC HYDROCARBON (BENZENE RING) MONITORING: Device designed to detect aromatic hydrocarbon (ring) substances. If this utility is incorporated into the above device, this requirement is met. Requires 1 each for Type 1 and Type 2 teams.

A gas detector is used to identify and monitor the presence of hazardous gases in the air, helping to prevent exposure to toxic or explosive substances. These devices are commonly used in industrial settings, confined spaces, and emergency response situations to ensure worker safety. The Draeger 8000 gas detector, for example, is designed to detect multiple gases at once and provides real-time alerts, making it a reliable tool for anyone working in potentially dangerous environments.

Additional information

Weight 10 lbs
Dimensions 14 × 10 × 6 in
