Dräger Probes

Description

Draeger probes attaches to the X-am pump to work with a Draeger portable gas detector like the X-act 7000.

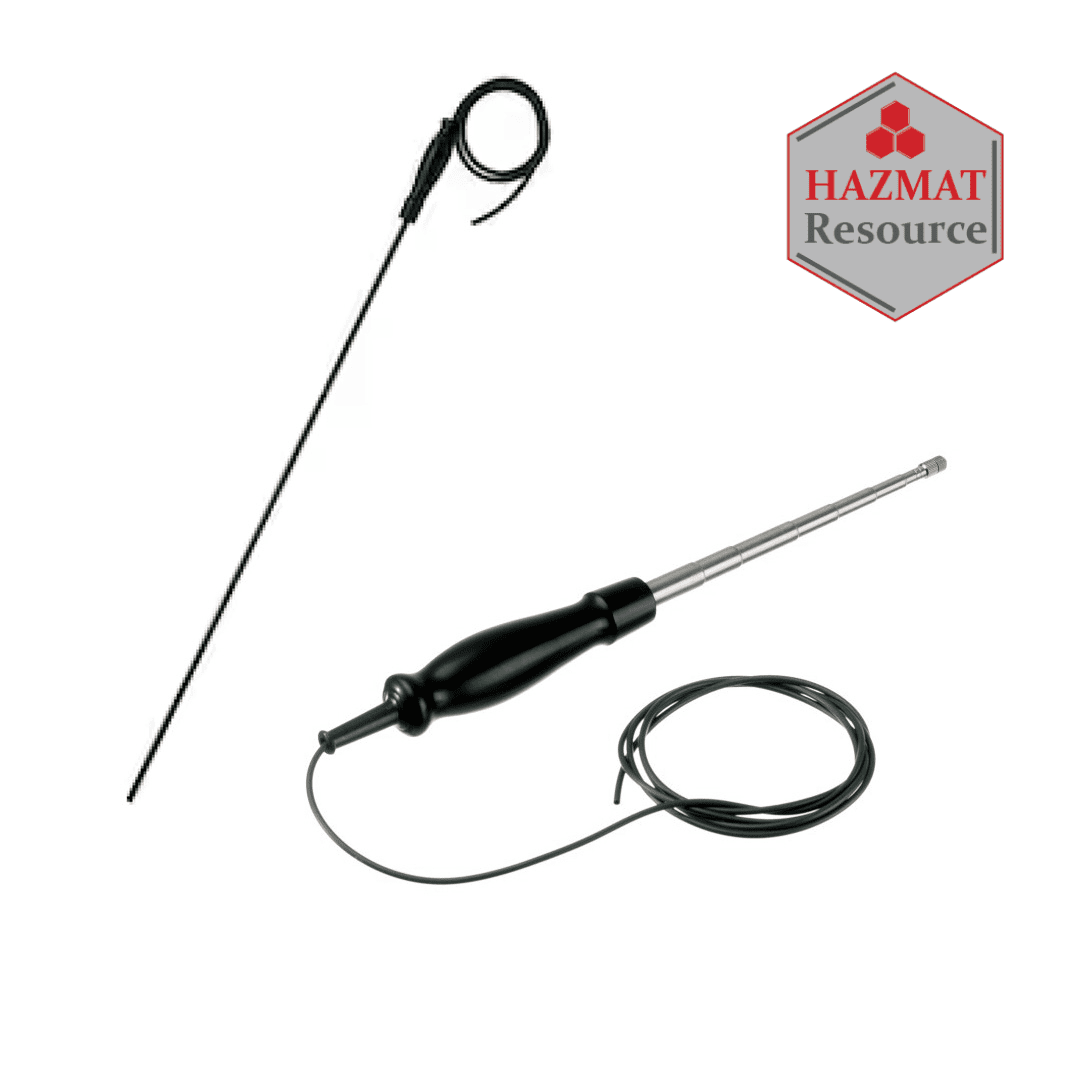

• Dräger Rigid probe set PN 8328667 (50 cm / 30 in) with 1 m / 39 in FKM hose
• Dräger Flexible, semi-rigid probe PN 8316531 (70 cm / 27 in) with 1 m / 39 in FKM hose
• Dräger Rigid fiberglass probe PN 8316532 (90 cm / 35 in) with 1 m / 39 in FKM hose
• Dräger Telescopic probe ES150 PN 83 16 533 (max. length: 150 cm / 59 in)

Some probes include the Draeger FKM hose which helps test for hazmat substances that can be measure in the ppb range, in hard to reach places like pipes, ducts, and tanks. With the Draeger gas detection monitor first responders precise results right on site. This replaces slow, expensive lab analyses. Because the X-am Pump is also certified explosion-proof for Zone 0, it is perfectly suited for these tasks.

Need More Information?

​​This innovative Draeger gas detection system works with Draeger MicroTubes you can purchase at HAZMAT Resource.

For more information about the Dräger Probes, gas detection devices, and other accessories, contact us today!

Draeger X-act 7000 Manual PDF	Dräger sampling hoses for portable gas detection devices	Dräger-Tubes and MicroTubes Product Safety Information

Dräger sampling hoses for portable gas detection devices

Working in confined spaces and containers like pipelines, silos, ducts and shafts is part of everyday operations in many industries. But before maintenance, cleaning or repairs can take place inside these spaces, any risks facing the workers must be minimised. In general, a risk assessment will determine which specific risks might occur. Common risks include concentrations of toxic or explosive gases and fumes, as well as life-threatening oxygen depletion.

To prevent accidents and protect workers, these confined spaces and containers must be cleared for entry. That means checking and analysing the concentrations of any hazardous substances that may be present. This is done from outside by using sampling hoses that can be connected to compatible multi-gas detection devices. These hoses enable you to take in gas samples and test them remotely without exposing the testing crew to hazards.

TIME IS A RELEVANT FACTOR DURING TESTING
Before each test, the sampling hose must be flooded with the air sample to be tested. The flooding phase is intended to eliminate any interfering factors such as “dead volumes”. Flooding times vary depending on the type and concentration of gas or vapour being tested, as well as the material, length, diameter and age of the testing hose. As a rule of thumb, this approach is recommended: With a dry, brand-new hose, allow the hose to be flushed for about 3 seconds per metre.

During the testing phase, The narrower the hose diameter, the faster the results will be available. For a volume flow of 0.3 l/min, a standard gas such as methane, oxygen or carbon monoxide only takes 1 about 5 seconds to pass through a 10 m hose with an inner diameter of 3 mm. Under the same conditions, it takes the same gas as long as 40 seconds to pass through a 10 m hose with an inner diameter of 5 mm – in other words, almost 3 times longer. The table below shows other testing times for hose lengths of 10 and 45 metres, at three different volume flows and an inner hose diameter of either 3 mm or 5 mm. In all these cases, the 3 mm hose works more than twice as fast as the 5 mm hose.

• Rigid probe set, GP 600, (50 cm / 30 in) with 1 m / 39 in FKM hose 83 28 667
• Flexible, semi-rigid probe (70 cm / 27 in) with 1 m / 39 in FKM hose 83 16 531
• Rigid fiberglass probe (90 cm / 35 in) with 1 m / 39 in FKM hose 83 16 532
• ES150 Draeger telescopic probe (max. length: 150 cm / 59 in) 83 16 533

We carry a wide array of probes including the Draeger 4511262 probe, Draeger 8328667, Set probe GP 600, Draeger 8328667 GP 600 Probe for use with portable Draeger gas detectors.
