Draeger MicroTubes Benzene 1-150 ppb 8610600

Sale!
Draeger MicroTubes Benzene 1-150 ppb 8610060 Hazmat Resource
Draeger Benzene MicroTubes - 8610600 Hazmat Resource
MicroTubes Dräger Benzene Hazmat Resource
Draeger microtubes 8610600 Hazmat Resource

Draeger MicroTubes Benzene 1-150 ppb 8610600

Original price was: $232.00.Current price is: $220.40.

The Draeger MicroTubes Benzene 1-150 ppb 8610600 has a standard measurement of 1 to 150 ppb. Provides precise and reliable measurements utilizing the Dräger X-act 7000 analysis system, each set of MicroTubes can perform 10 tests.

Add to quote
SKU: 8610600 Category:

Description

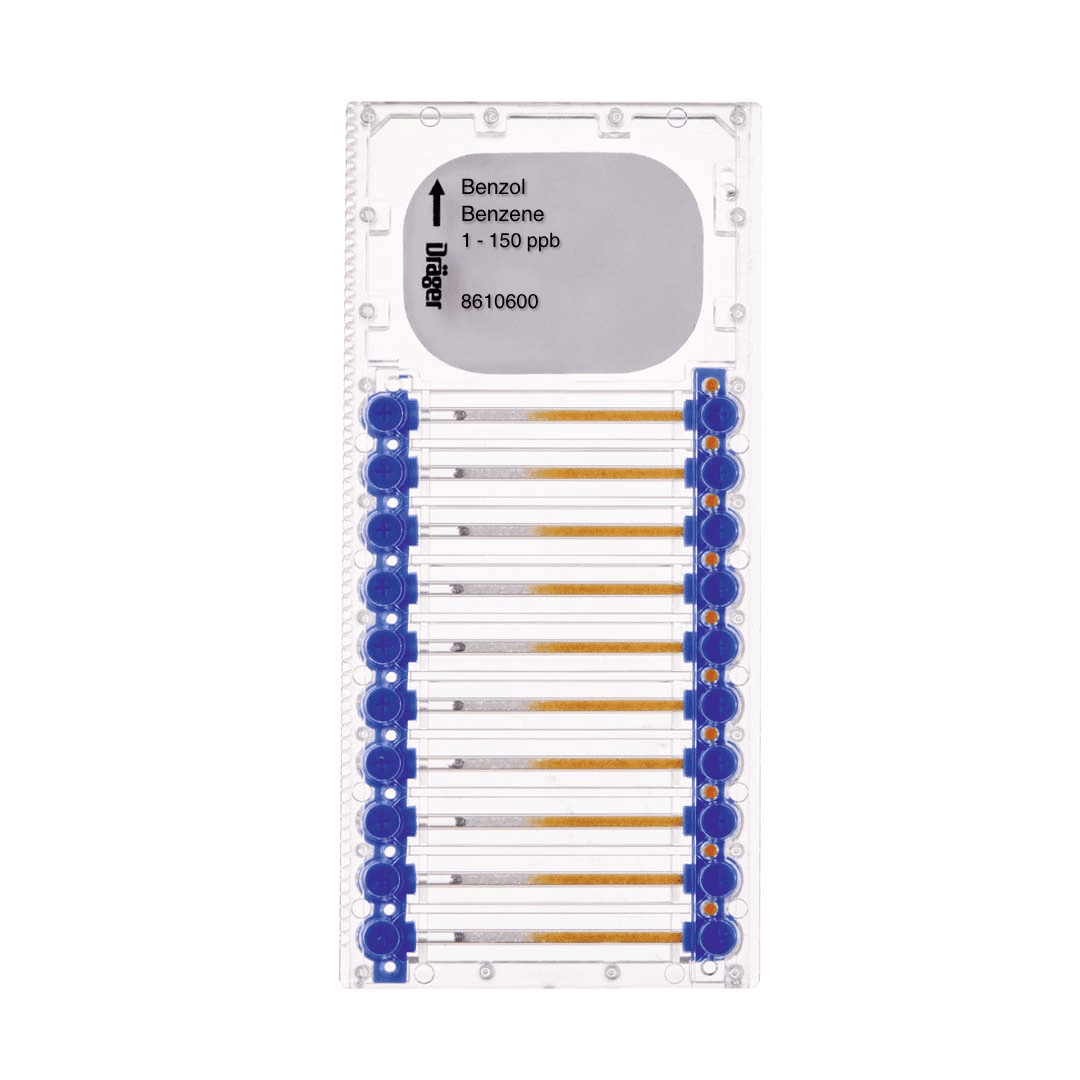

The Draeger MicroTubes Benzene 1-150 ppb 8610600 enables up to 10 precise gas detection tests. Designed with substance-specific reactive layers and multiple pre-layers inside the capillaries, the MicroTubes offer highly selective testing by filtering out interfering substances commonly found in the workplace.

This advanced filtration significantly reduces cross-sensitivities, helping to minimize false positives and unnecessary alarms. MicroTubes Dräger Benzene includes an RFID tag containing all necessary calibration data, valid for the product’s one-year lifespan—eliminating manual calibration and saving time and costs.

Draeger Benzene MicroTubes – 8610600

Designed for use with the Dräger X-act 7000 automatic tube pump, these microtubes offer laboratory-quality measurements with the simplicity and portability required in industrial and emergency environments.

Measuring Range:

1 to 150 ppb

(only in conjunction with Tube ppb Booster Basic 37 02 013)

Typical Measuring Time:approx. 100 to 900 s
Accuracy:± 25 % (under calibration conditions)
Ambient Conditions:
Temperature:0 to 40 °C
Temperature correction:

20 to 30°C → none

< 20°C → 3% from measured value per °C

Humidity:1 to 30 mg/L
Humidity correction:none
Cross Sensitivity:
No influence at 25 ppb Benzene by:20 ppm octan
130 ppb toluene
150 ppb xylene

Hose and probe measurement

The following flushing time recommendations for hose and probe measurements are marked with a brand-new, dry and clean hose and probes.

HoseLength (meter)Flashing time (min)
FKM hose5 – 203
FKM hose45 5
PTFE-line PVC hose3 – 155
Bar probe 90 (83 16 532) 2
Telescopic probe ES 150 (83 16 533) 1
Probe Set GP600 (83 28 667) 3

Hazmat Resource can help configure the right protection setup
for your respiratory safety needs

Dräger offers the X-plore® 8000 Helmet for hood, 3710800 as part of a versatile system built for demanding industrial use. Helmets | Hoods | Face Seals | Visors...just to name a few...
Email us at sales@hazmatresource.com
Fast Quote

Compatibility and Storage

Draeger Micro Tubes 8610600 Benzene are only compatible with the X-act 7000 system and are supplied in sealed packaging to ensure reagent integrity. The shelf life is typically 1–2 years, depending on the specific tube and storage conditions, and each box contains a number of individually wrapped tubes for one-time use.

How Dräger MicroTubes Work

Dräger MicroTubes operate on a well-established colorimetric principle but with advanced enhancements. Each microtube contains a specially prepared reagent system that reacts with a specific target gas to produce a distinct color change. This reaction is highly selective, allowing the microtube to differentiate the target substance from similar or interfering gases.

Unlike traditional gas detector tubes that rely solely on manual sampling and visual interpretation, Draeger Benzene gas detection are used in conjunction with the X-act 7000, an automatic sampling and evaluation pump. This integration enables automatic air sampling, optical analysis, and digital display of the results in parts per billion (ppb) or parts per million (ppm), depending on the microtube and substance being measured.

Benzene Draeger MicroTubes Handbook
Dräger MicroTubes Product Catalog

Basic Operation with X-act Device

X-act 7000 Remote Sampling

X-act 7000 PBB Booster Tube

About Dräger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need more information?

Fore more information about the Dräger MicroTubes Benzene 1-150 ppb gas detection microtubes 8610600, contact us today!

Draeger MicroTubes Benzene 1-150 ppb 8610600

Benzene is mainly used as a starting material to make other chemicals. It’s a key ingredient in the production of plastics, resins, synthetic fibers like nylon and polyester, as well as rubber, dyes, detergents, and drugs. It’s also used to make lubricants and pesticides.

While benzene was once used more widely as an industrial solvent and in gasoline, those uses have been heavily restricted due to its toxicity and links to cancer. Today, its use is mostly limited to controlled industrial settings, where it serves as a building block for more complex chemical compounds.

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 5 in
