Draeger MicroTubes Alcohol 10-5000 ppm 8610380

Original price was: $127.00.Current price is: $120.65.

The Draeger MicroTubes Alcohol 10-5000 ppm 8610380 has a standard measurement of 10 to 5000 ppm. Provides precise and reliable measurements utilizing the Dräger X-act 7000 analysis system, each set of MicroTubes can perform 10 tests.

Add to quote
SKU: 8610380 Category:

Description

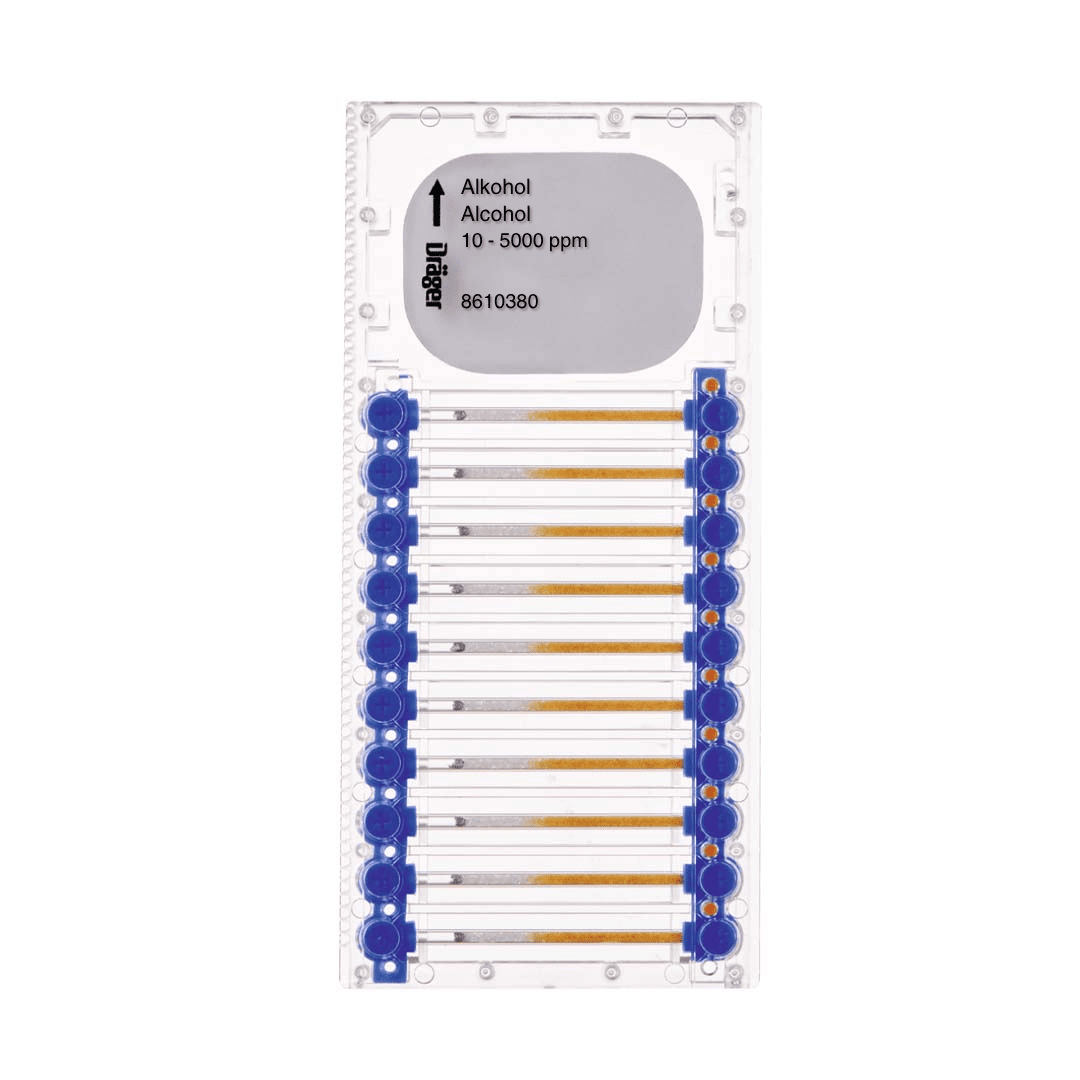

The Draeger MicroTubes Alcohol 10-5000 ppm 8610380 enables up to 10 precise gas detection tests. Designed with substance-specific reactive layers and multiple pre-layers inside the capillaries, the MicroTubes offer highly selective testing by filtering out interfering substances commonly found in the workplace.

This advanced filtration significantly reduces cross-sensitivities, helping to minimize false positives and unnecessary alarms. MicroTubes Dräger Alcohol includes an RFID tag containing all necessary calibration data, valid for the product’s one-year lifespan—eliminating manual calibration and saving time and costs.

Draeger Alcohol MicroTubes – 8610380

Designed for use with the Dräger X-act 7000 automatic tube pump, these microtubes offer laboratory-quality measurements with the simplicity and portability required in industrial and emergency environments.

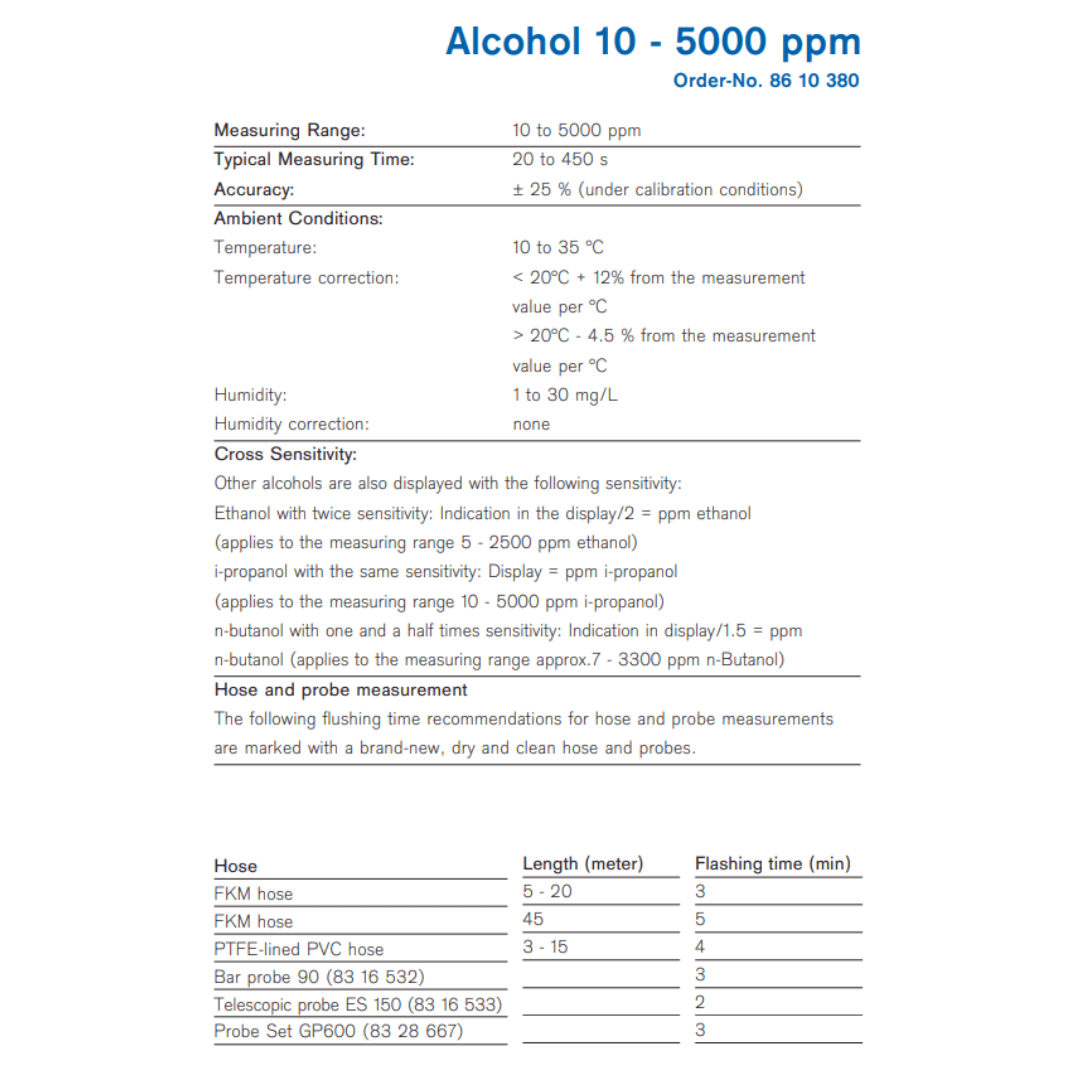

Measuring Range: 10 to 5000 ppm
Typical Measuring Time: 20 to 450 s
Accuracy: ± 25 % (under calibration conditions)
Ambient Conditions:
Temperature: 10 to 35 °C
Temperature correction: < 20°C  + 12% from the measurement value per °C > 20°C  – 4.5% from the measurement value per °C
Humidity: 1 to 30 mg/L
Humidity correction: none
Cross Sensitivity: Other alcohols are also displayed with the following sensitivity: Ethanol with twice sensitivity: Indication in the display/2 = ppm ethanol (applies to the measuring range 5 – 2500 ppm ethanol) i-propanol with the same sensitivity: Display = ppm i-propanol (applies to the measuring range 10 – 5000 ppm i-propanol) n-butanol with one and a half times sensitivity: Indication in display/1.5 = ppm n-butanol applies to the measuring range approx. 7 – 3300 ppm n-Butanol)

Hose and probe measurement

The following flushing time recommendations for hose and probe measurements are marked with a brand-new, dry and clean hose and probes.

HoseLength (meter)Flashing time (min)
FKM hose5 – 203
FKM hose45 5
PTFE-line PVC hose3 – 154
Bar probe 90 (83 16 532) 3
Telescopic probe ES 150 (83 16 533) 2
Probe Set GP600 (83 28 667) 3

Hazmat Resource can help you find the right accessories to keep your detection equipment powered and ready for any operation.

We supply certified instruments built for precision, safety, and durability — from portable detectors to fixed monitoring systems. Contact us today to find the right setup for your field or facility. DRÄGER | HAZCAT | REDWAVE | AGILENT — trusted brands for your safety program.
Email us at sales@hazmatresource.com
Fast Quote

Compatibility and Storage

Draeger Micro Tubes 8610380 Alcohol are only compatible with the X-act 7000 system and are supplied in sealed packaging to ensure reagent integrity. The shelf life is typically 1–2 years, depending on the specific tube and storage conditions, and each box contains a number of individually wrapped tubes for one-time use.

How Dräger MicroTubes Work

Dräger MicroTubes operate on a well-established colorimetric principle but with advanced enhancements. Each microtube contains a specially prepared reagent system that reacts with a specific target gas to produce a distinct color change. This reaction is highly selective, allowing the microtube to differentiate the target substance from similar or interfering gases.

Unlike traditional gas detector tubes that rely solely on manual sampling and visual interpretation, Draeger Alcohol gas detection are used in conjunction with the X-act 7000, an automatic sampling and evaluation pump. This integration enables automatic air sampling, optical analysis, and digital display of the results in parts per billion (ppb) or parts per million (ppm), depending on the microtube and substance being measured.

Alcohol Draeger MicroTubes Handbook
Dräger MicroTubes Product Catalog

Basic Operation with X-act Device

X-act 7000 Remote Sampling

X-act 7000 PBB Booster Tube

About Dräger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need more information?

Fore more information about the Dräger MicroTubes Alcohol 10-5000 ppm gas detection microtubes 8610380, contact us today!

Draeger MicroTubes Alcohol 10-5000 ppm 8610380

The term “alcohol” refers to a group of organic compounds, not just one substance, so the chemical formula can vary depending on the specific type of alcohol. However, the simplest and most common alcohol is ethanol, which is the kind found in alcoholic beverages and many industrial products.

Ethanol’s chemical formula is: C₂H₅OH
This can also be written as CH₃CH₂OH to show its structure more clearly.

Other examples include:

Methanol (wood alcohol): CH₃OH

Isopropanol (rubbing alcohol): C₃H₇OH

All alcohols have at least one hydroxyl group (–OH) attached to a carbon atom.
