Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300

Sale!
Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300 Hazmat Resource
Draeger 1,3-Butadiene MicroTubes - 8610300 Hazmat Resource
MicroTubes Dräger 1,3-Butadiene Hazmat Resource
Draeger 1,3-Butadiene Gas Detection Hazmat Resource

Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300

Original price was: $146.00.Current price is: $138.70.

The Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300 has a standard measurement of 0.5 to 25 ppm. Provides precise and reliable measurements utilizing the Dräger X-act 7000 analysis system, each set of MicroTubes can perform 10 tests.

Add to quote
SKU: 8610300 Category:

Description

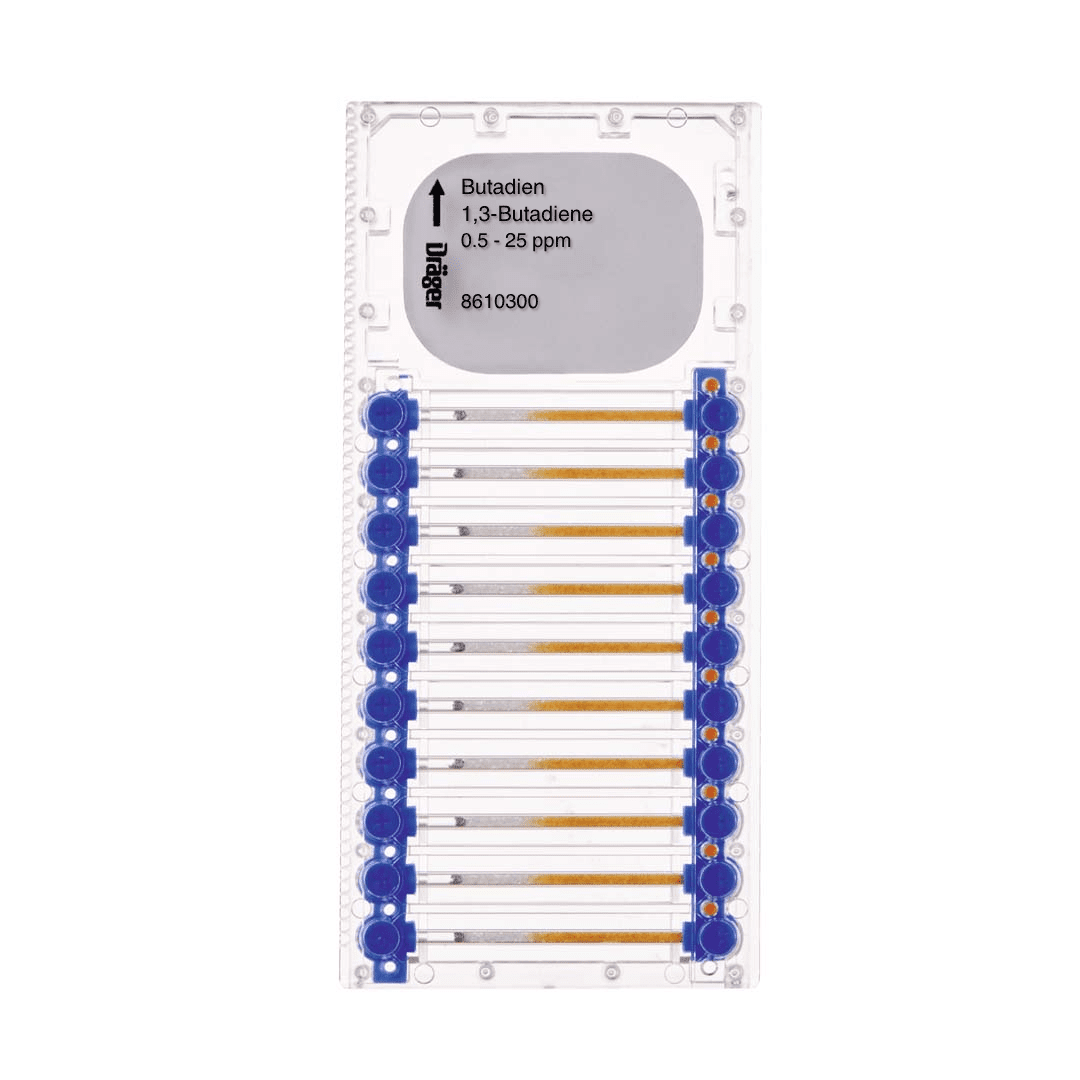

The Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300 enables up to 10 precise gas detection tests. Designed with substance-specific reactive layers and multiple pre-layers inside the capillaries, the MicroTubes offer highly selective testing by filtering out interfering substances commonly found in the workplace.

This advanced filtration significantly reduces cross-sensitivities, helping to minimize false positives and unnecessary alarms. MicroTubes Dräger 1,3-Butadiene includes an RFID tag containing all necessary calibration data, valid for the product’s one-year lifespan—eliminating manual calibration and saving time and costs.

Draeger 1,3-Butadiene MicroTubes – 8610300

Designed for use with the Dräger X-act 7000 automatic tube pump, these microtubes offer laboratory-quality measurements with the simplicity and portability required in industrial and emergency environments.

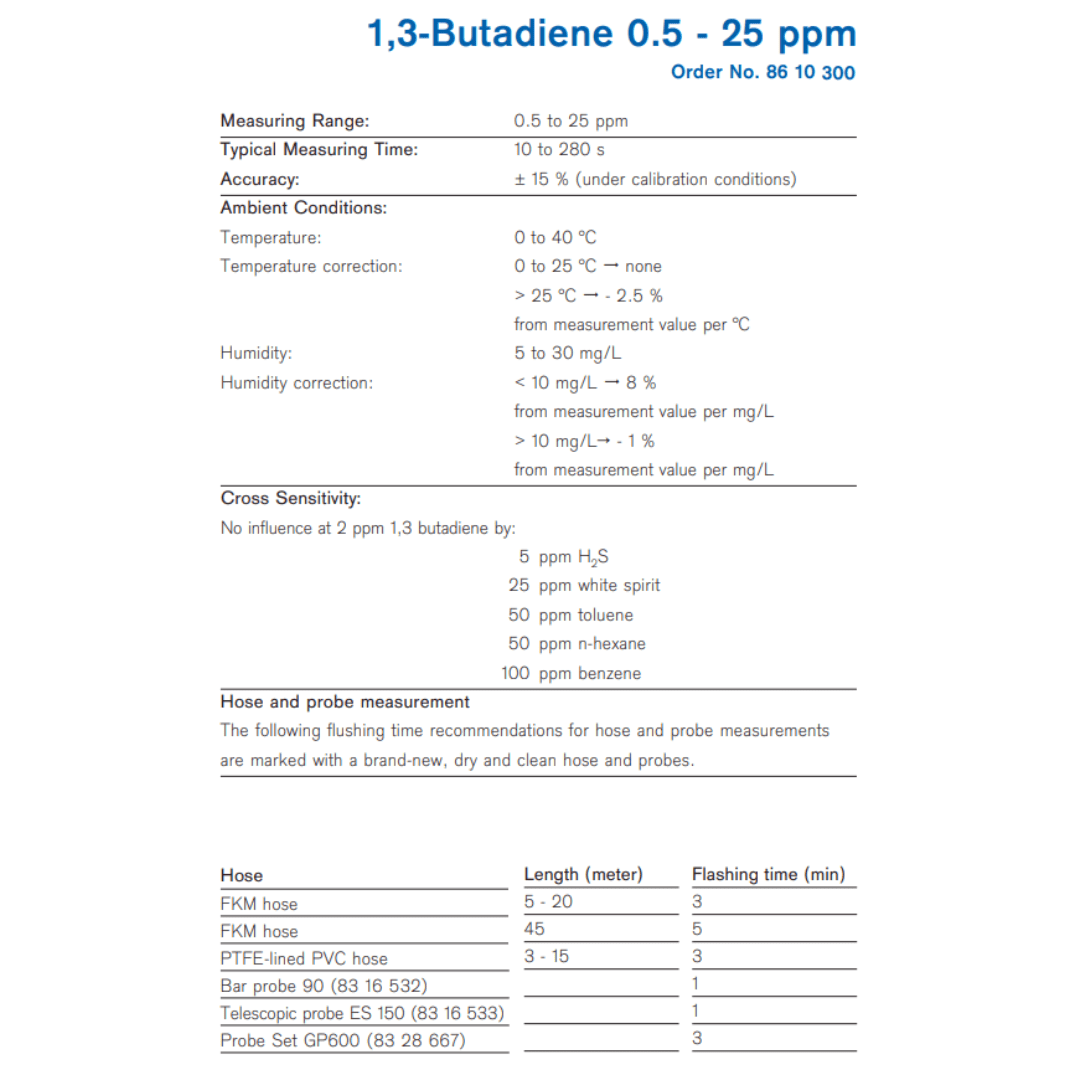

Measuring Range:0.5 to 25 ppm
Typical Measuring Time:10 to 280 s
Accuracy:± 15 % (under calibration conditions)
Ambient Conditions:
Temperature:0 to 40 °C
Temperature correction:0 to 25°C → none
> 25°C → -2.5% from measurement value per °C
Humidity:5 to 30 mg/L
Humidity correction: < 10 mg/L → 8 % from the measurement value per mg/L
> 10 mg/L → -1 %
from the measurement value per mg/L
Cross Sensitivity:
No influence at 2 ppm 1,3 butadiene by:5 ppm H2S
25 ppm white spirit
50 ppm toluene
50 ppm n-hexane
100 ppm benzene

Hose and probe measurement

The following flushing time recommendations for hose and probe measurements are marked with a brand-new, dry and clean hose and probes.

HoseLength (meter)Flashing time (min)
FKM hose5 – 203
FKM hose45 5
PTFE-line PVC hose3 – 153
Bar probe 90 (83 16 532) 1
Telescopic probe ES 150 (83 16 533) 1
Probe Set GP600 (83 28 667) 3

Hazmat Resource can help you find the right accessories to keep your detection equipment powered and ready for any operation.

We supply certified instruments built for precision, safety, and durability — from portable detectors to fixed monitoring systems. Contact us today to find the right setup.
DRÄGER | HAZCAT | REDWAVE | AGILENT — trusted brands for your safety program.
Email us at sales@hazmatresource.com
Fast Quote

Compatibility and Storage

Draeger Micro Tubes 8610300 1,3-Butadiene are only compatible with the X-act 7000 system and are supplied in sealed packaging to ensure reagent integrity. The shelf life is typically 1–2 years, depending on the specific tube and storage conditions, and each box contains a number of individually wrapped tubes for one-time use.

How Dräger MicroTubes Work

Dräger MicroTubes operate on a well-established colorimetric principle but with advanced enhancements. Each microtube contains a specially prepared reagent system that reacts with a specific target gas to produce a distinct color change. This reaction is highly selective, allowing the microtube to differentiate the target substance from similar or interfering gases.

Unlike traditional gas detector tubes that rely solely on manual sampling and visual interpretation, Draeger 1,3-Butadiene gas detection are used in conjunction with the X-act 7000, an automatic sampling and evaluation pump. This integration enables automatic air sampling, optical analysis, and digital display of the results in parts per billion (ppb) or parts per million (ppm), depending on the microtube and substance being measured.

1,3-Butadiene Draeger MicroTubes Handbook
Dräger MicroTubes Product Catalog

Basic Operation with X-act Device

X-act 7000 Remote Sampling

X-act 7000 PBB Booster Tube

About Dräger

Dräger manufactures medical and safety technology products. In so doing, Draeger protects, supports, and saves people’s lives around the world with fire departments, hazmat, and emergency services. Founded in Lübeck in 1889, Dräger has grown into a worldwide, listed enterprise. It is in its fifth generation as a family-run business. Dräger has more than 15,000 employees worldwide and is present in over 190 countries around the globe. In 2020, the company generated net sales of around EUR 3.4 billion.Hazmat responders all over the world use Dräger technology. It operates in around 50 countries with its own sales and service companies directly on location where its customers are. HazMat teams rely on HAZMAT Resource, get on-board and request a quote today!

Dräger VOICE – your hazmat-based safety product finder

Dräger HazMat VOICE is an essential tool for the safe handling of hazardous materials. One click and you’ll receive relevant information and specific recommendations of safety equipment for more than 1,500 hazardous substances in its database. Give it a try – it is so simple https://www.draeger.com/en-us_us/Substances

Need more information?

Fore more information about the Dräger MicroTubes 1,3-Butadiene 0.5-25 ppm gas detection microtubes 8610300
, contact us today!

Draeger MicroTubes 1,3-Butadiene 0.5-25 ppm 8610300

1,3-Butadiene is a colorless gas at room temperature with a mild gasoline-like odor. It’s highly flammable and can form explosive mixtures with air. Here are some of its key properties:

  • Chemical Formula: C₄H₆
  • Molecular Weight: 54.09 g/mol
  • Boiling Point: -4.4°C (24.1°F)
  • Melting Point: -108.9°C (-164°F)
  • Density: 0.62 g/cm³ (gas at 0°C and 1 atm)
  • Solubility: Slightly soluble in water; more soluble in organic solvents like alcohol and ether
  • Vapor Pressure: High at room temperature, which means it evaporates easily
  • Flammability: Extremely flammable, with a wide explosive range in air (about 2 to 12.5%)

It’s a reactive compound that readily undergoes polymerization, especially under heat or in the presence of catalysts. Because of this reactivity and its toxicity (including being a known carcinogen), it must be handled with proper safety controls in industrial settings.

Additional information

Weight 1 lbs
Dimensions 5 × 5 × 5 in
